Acoustic products
OWS-131845TA-8E
Rectangular speaker
This high-efficiency microspeaker has been upgraded to deliver even higher SPL levels with extented high frequency respose compared to the previous version without increasing the outer dimensions. Also available with wires.
Characteristics
Size (ØxH) [mm]
0.0x4.5

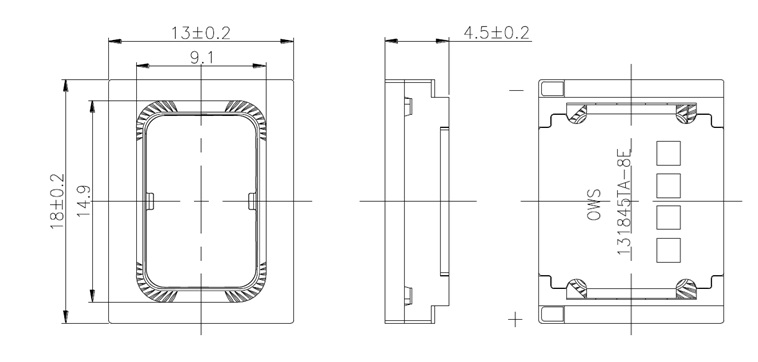

Size (LxWxH) [mm]
18.0x13.0x4.5
Sensitivity [dBSPL]
81.0±3 dB
1W/1.0m, 1cc rv
Impedance [Ω]
8
Power [W]
1.0 / 1.2
nom / max, in 1cc
F0 [Hz]
1000
(in 1cc)
Termination
Terminals
Also available with wires
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.
