Acoustic products
Characteristics

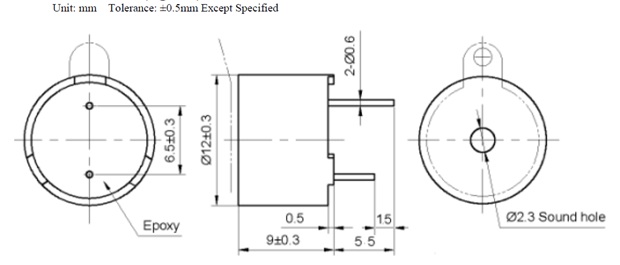

Size (ØxH) [mm]
12.0x9.0
Size (LxWxH) [mm]
0.0x0.0x9.0
Type

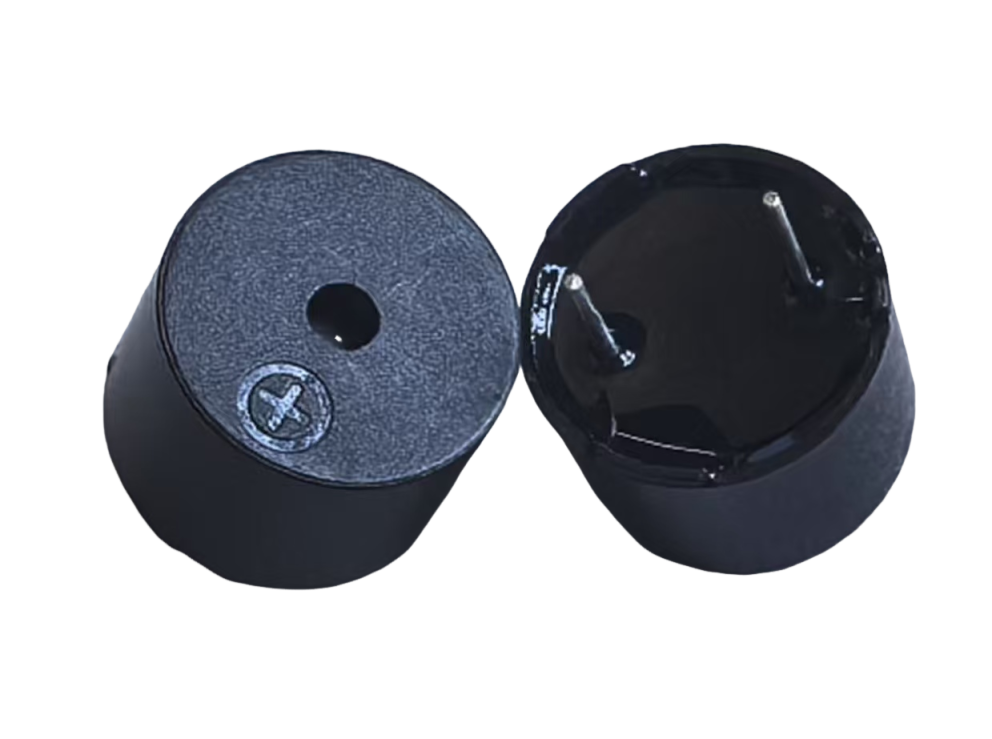

Magnetic buzzer
Form factor
Circular
SPL [dBSPL]
90
dB, min. @10 cm @ Vrated
F0 [Hz]
2400
Hz
Rated voltage [V]
12.0
Vmax [V]
15.0
Termination
Pins
Coil resistance [Ω]
140Ω±20Ω
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.
