Acoustic products

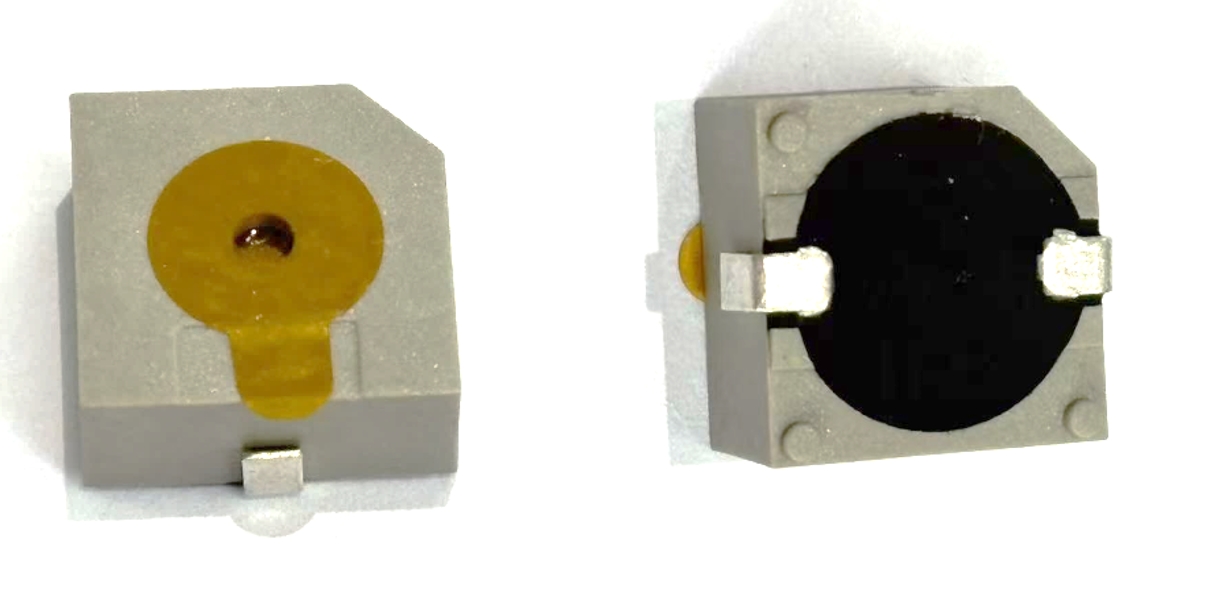

OWMB-131310SA-24-5
Magnetic buzzer
Magnetic buzzer with built-in driver circuit
Characteristics

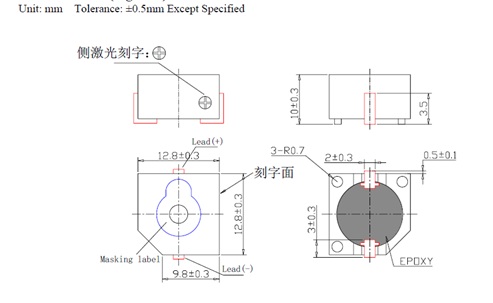

Size (ØxH) [mm]
0.0x10.0
Size (LxWxH) [mm]
12.8x12.8x10.0
Type
Magnetic buzzer
Form factor
Rectangular
SPL [dBSPL]
85
min dB @10 cm @ Vrated
F0 [Hz]
2400
Hz
Rated voltage [V]
5.0
Vmax [V]
7.0
DC Voltage
Termination
SMD
Coil resistance [Ω]
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.
