Acoustic products
Characteristics
Size (ØxH) [mm]
17.0x6.8
Size (LxWxH) [mm]
0.0x0.0x6.8
Type
Piezo buzzer
Form factor
Circular
SPL [dBSPL]
80
min. @10cm @ Vrated
F0 [Hz]
4000
Rated voltage [V]
5.0
Vmax [V]
30.0
Termination
Through hole
Coil resistance [Ω]
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.

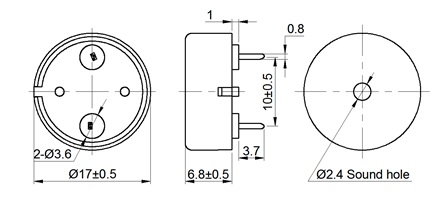

Mechanical drawing
