Characteristics
Size (ØxH) [mm]
22.1x10.8
Size (LxWxH) [mm]
0.0x0.0x10.8
Type
Piezo buzzer
Form factor
Circular
SPL [dBSPL]
90
min. @30cm @ Vrated
F0 [Hz]
4000
Rated voltage [V]
12.0
Vmax [V]
25.0
Vp-p
Termination
Pins
Coil resistance [Ω]
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.

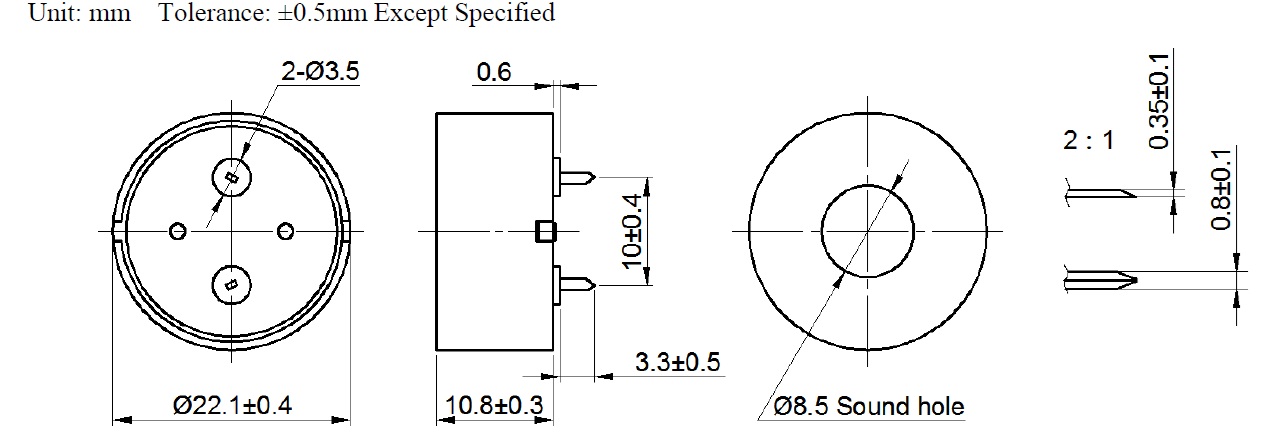

Mechanical drawing
