Acoustic products
Characteristics
Size (ØxH) [mm]
22.0x7.7
Size (LxWxH) [mm]
0.0x0.0x7.7
Type

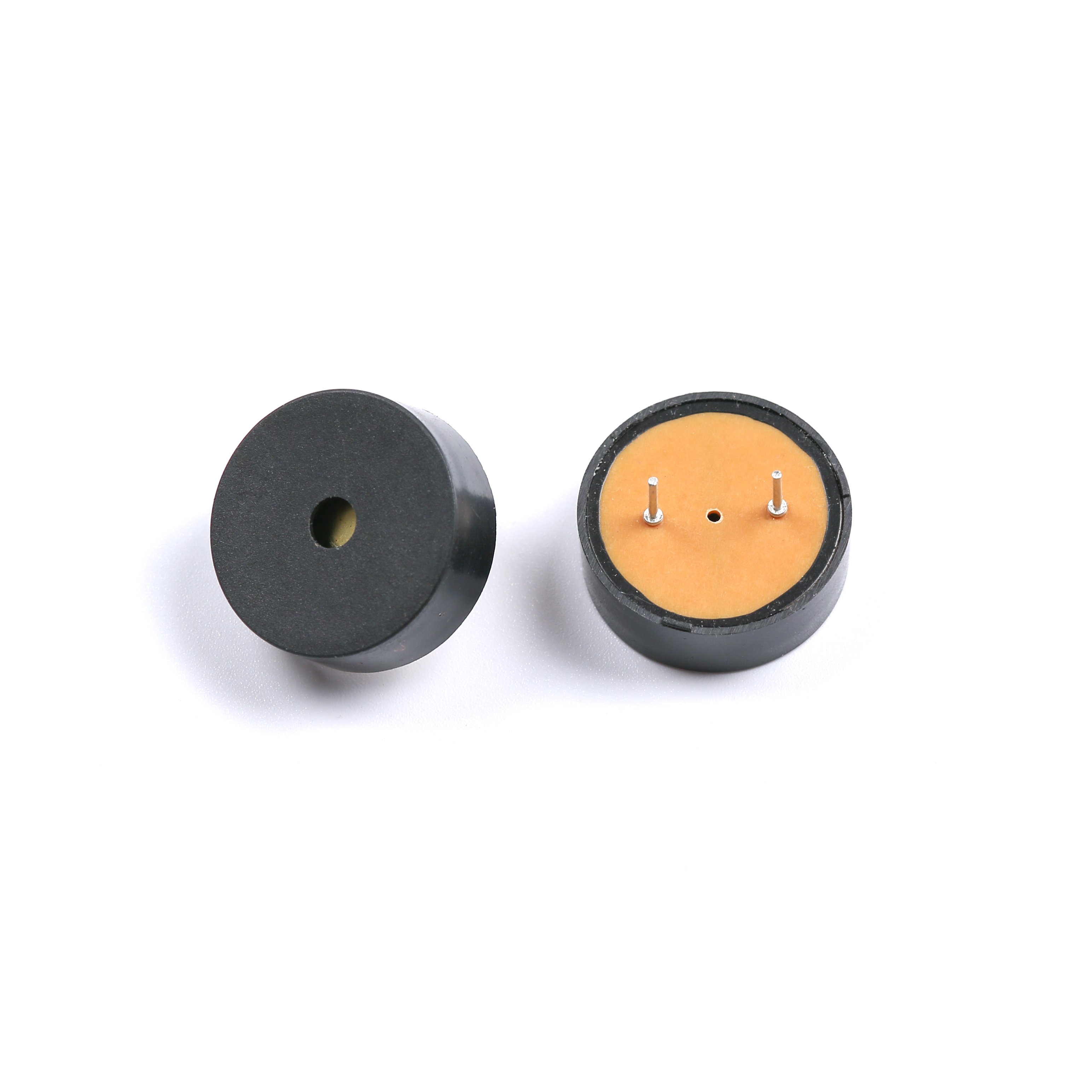

Piezo buzzer
Form factor
Circular
SPL [dBSPL]
92
min. @10cm @ Vrated
F0 [Hz]
4100
Rated voltage [V]
12.0
Vmax [V]
30.0
Vp-p
Termination
Pins
Coil resistance [Ω]
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.

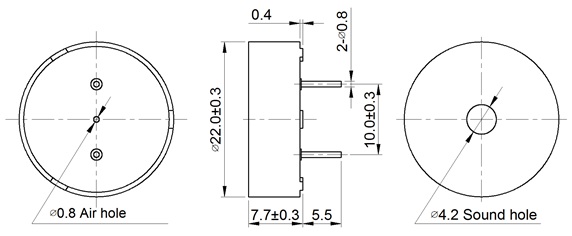

Mechanical drawing
