Acoustic products
Characteristics

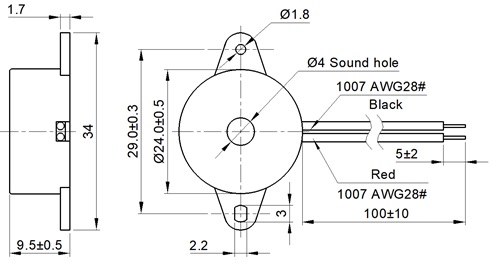

Size (ØxH) [mm]
24.0x9.5
Size (LxWxH) [mm]
0.0x0.0x9.5
Type
Piezo buzzer
Form factor
Circular
SPL [dBSPL]
90
dBSPL min.@10cm Vrated
F0 [Hz]
3400
Rated voltage [V]
12.0
Vmax [V]
20.0
VDC
Termination
Lead wires
Coil resistance [Ω]
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.
