Acoustic products
OWS-111525TA-8
Small rectangular speaker
Optimized to play in cavities about 1cc. Available with lead wires or leaf springs.
Characteristics
Size (ØxH) [mm]
0.0x2.5

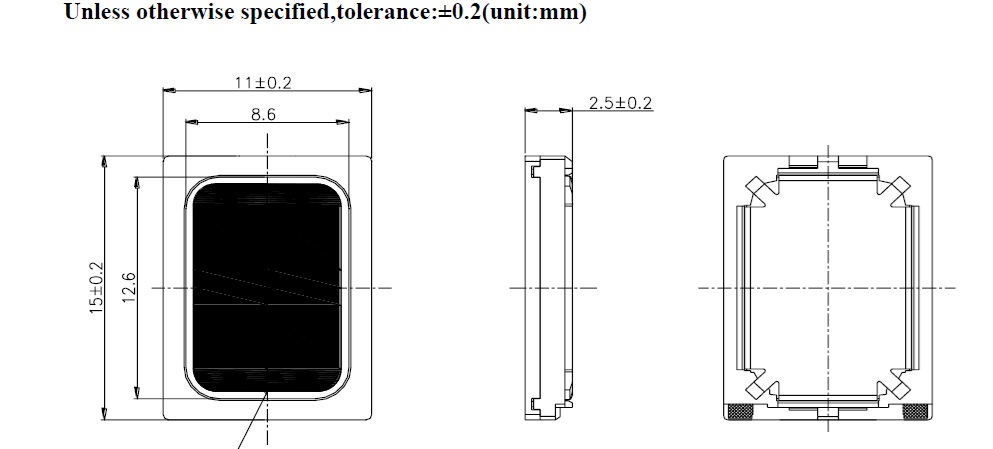

Size (LxWxH) [mm]
15.0x11.0x2.5
Sensitivity [dBSPL]
74.0±3 dB
1W/1m, 1cc rv
Impedance [Ω]
8
Power [W]
0.7 / 1.0
nom / max, in 1cc
F0 [Hz]
850
(in 1cc)
Termination
Spring contacts
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.
