Acoustic products

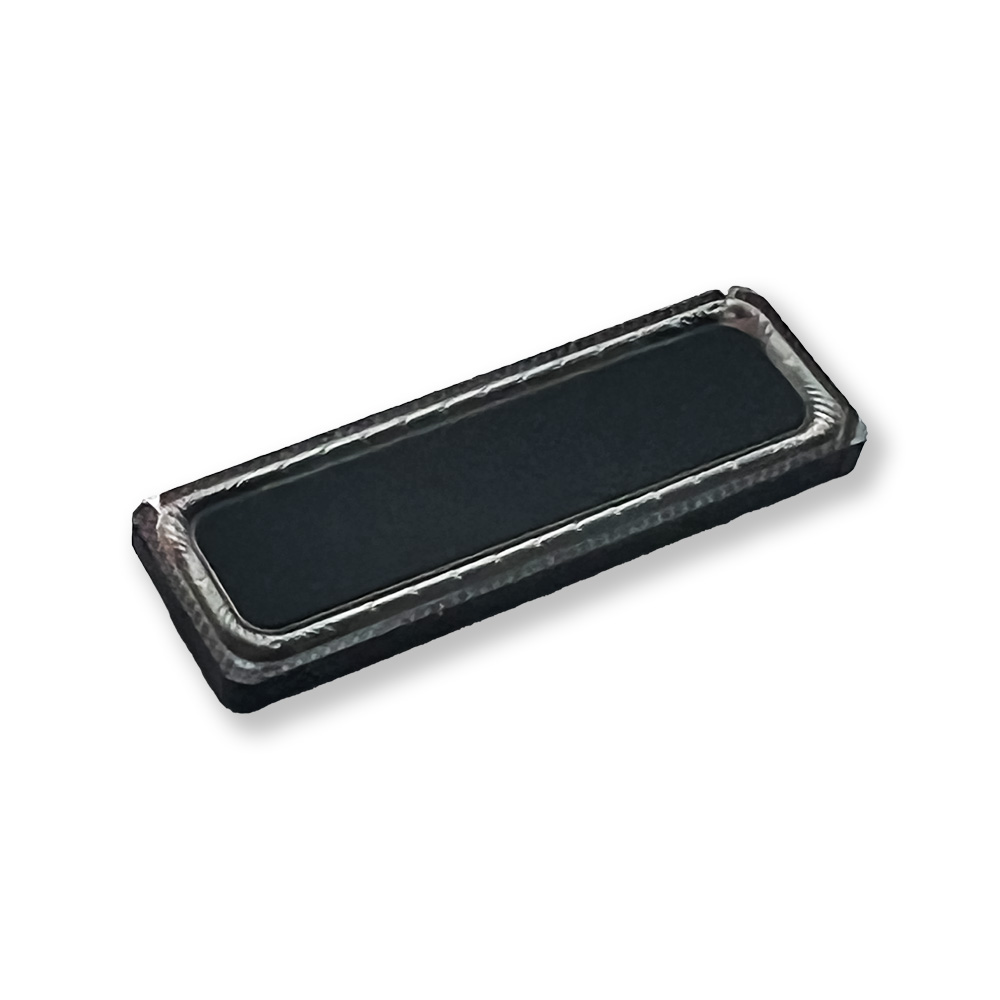

OWS-134004TA-4A
Characteristics
Size (ØxH) [mm]
0.0x4.0

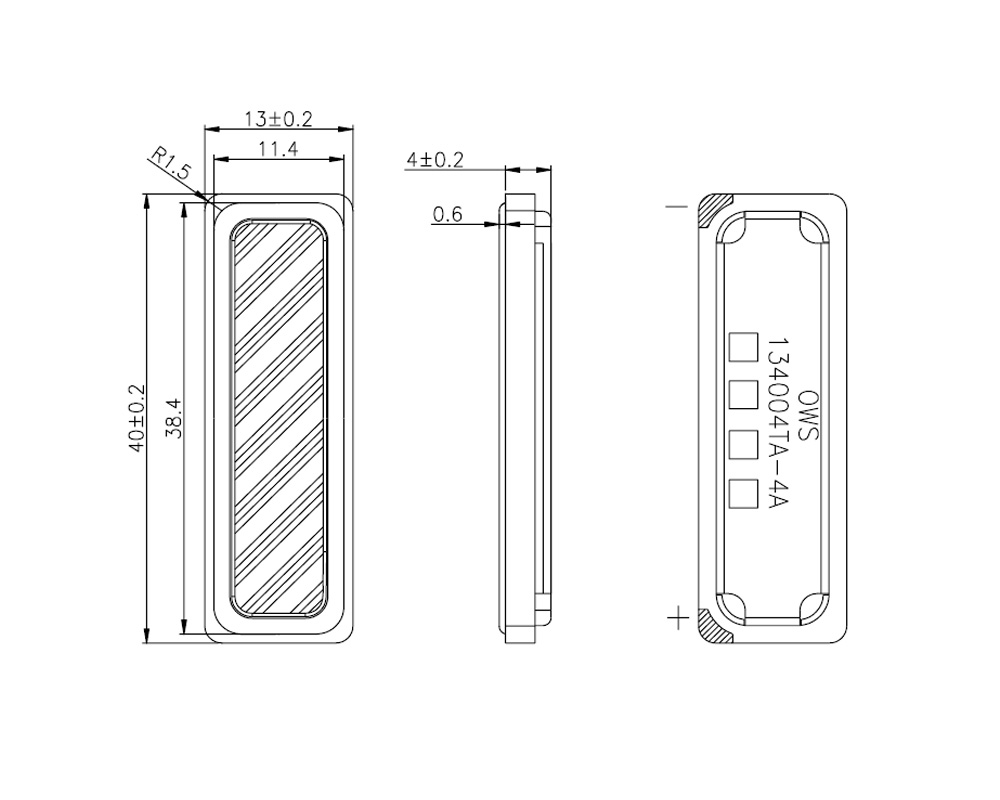

Size (LxWxH) [mm]
13.0x40.0x4.0
Sensitivity [dBSPL]
78.0±3dB
1W/1m, 5cc box
Impedance [Ω]
4
Power [W]
2.0 / 3.0
F0 [Hz]
550
±20%, in 5cc box
Termination
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.
