Acoustic products

OWS-161837TA-8

Small rectangular speaker

Rectangular speaker with high output.

OWS-161837TA-8

Characteristics

Size (ØxH) [mm]
0.0x3.7
Size (LxWxH) [mm]
18.0x16.0x3.7
Sensitivity [dBSPL]
82.2±3 dB
1.0W/1.0m, 1cc
Impedance [Ω]
8
Power [W]
1.5 / 1.7
nom / max, in 1cc
F0 [Hz]
1050
(in 1cc)
Termination
Terminals
other options available

Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.

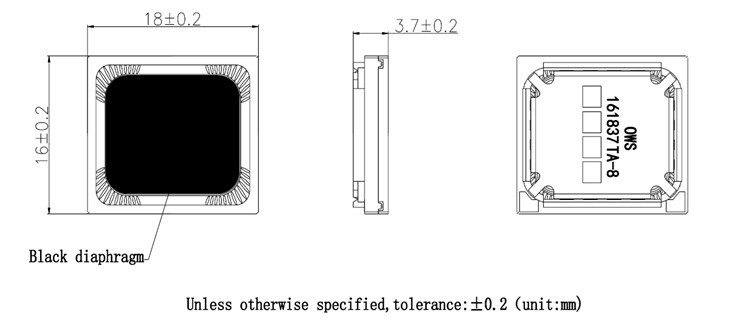

Mechanical drawing

OWS-161837TA-8
Updated 13-05-2024 10:25
