Acoustic products

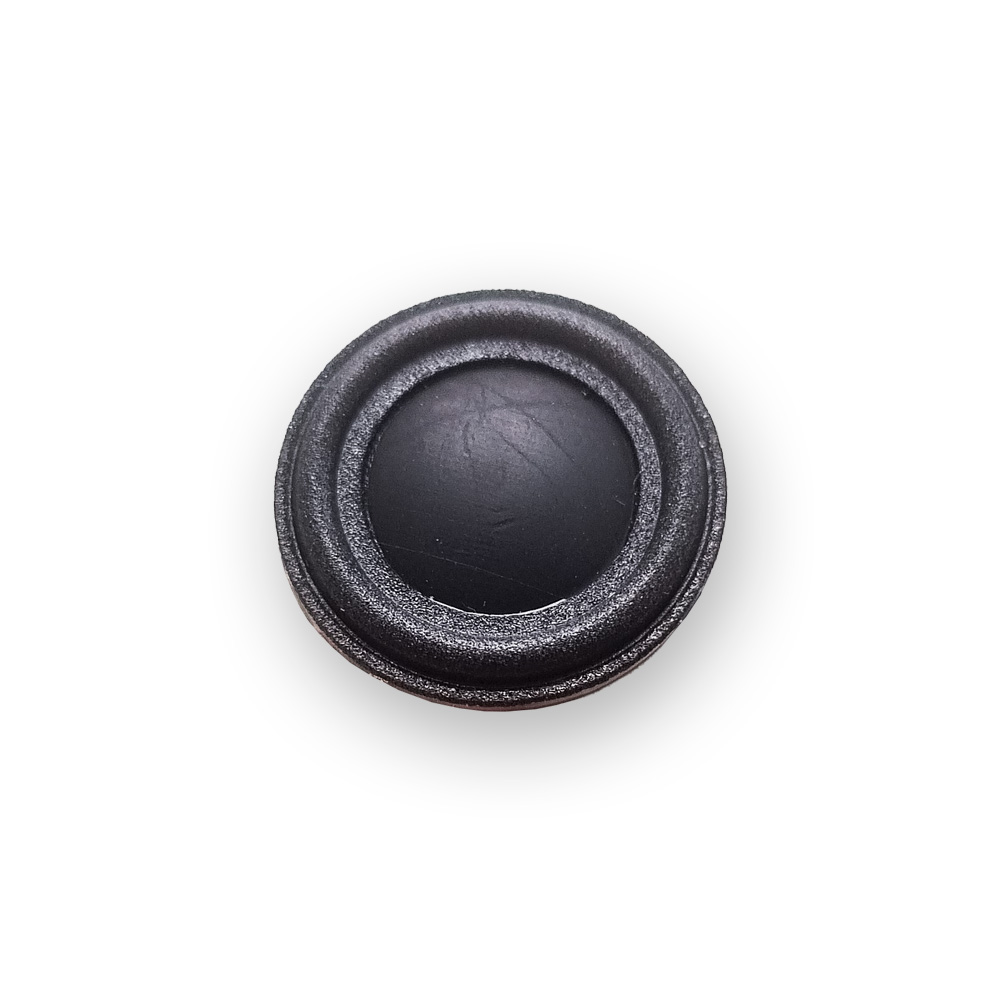

OWS-1840TA-4A
Circular speaker
Circular speaker with high output. Terminals for wire mounting
Characteristics

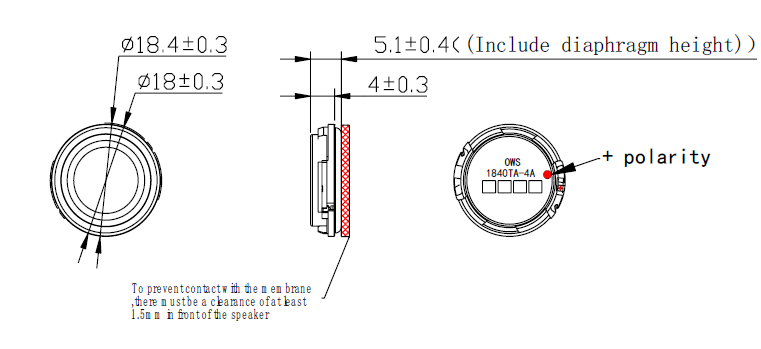

Size (ØxH) [mm]
18.0x5.1
Size (LxWxH) [mm]
0.0x0.0x5.1
Sensitivity [dBSPL]
76.0±3 dB
1.0W/1.0m, in 5.0cc
Impedance [Ω]
4
Power [W]
2.0 / 2.2
nom/max, in 5cc
F0 [Hz]
600
In 5.0cc
Termination
Terminals
Specifications are subject to change without prior notice. Upon request Ole Wolff can supply further specifications, simulation parameters etc.
