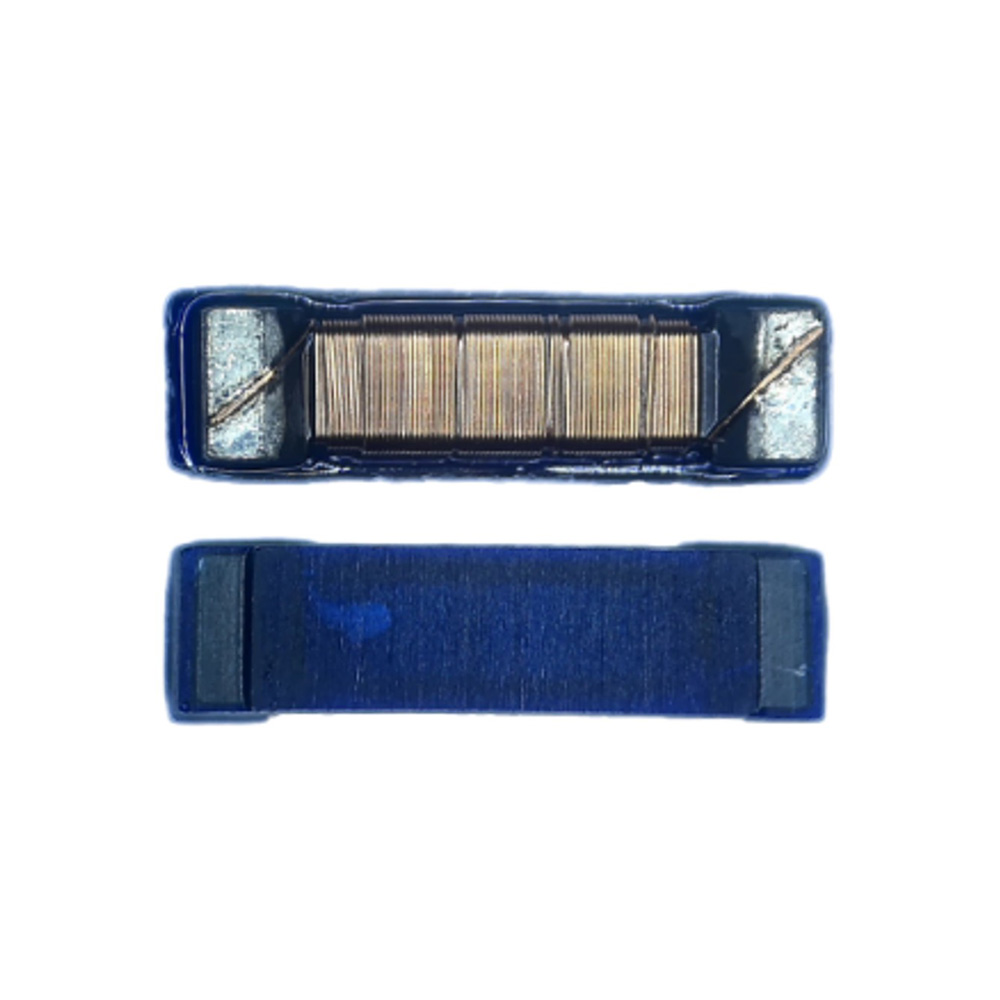

SMD Chip RFID inductor, Ferrite-winding , Cross to Size 0402
SMD Chip RFID inductor, Ferrite-winding , Cross to Size 0402
Features
• Ferrite body wire wound construction
• Accurate dimensions, SMT process suitable
• Great pulling force after reflow soldering
• Great for mechanical shocking and pressure
• Highly reliable in environments of temperature and humidity change
• Excellent Q characteristics
• Ferrite body wire wound construction
• Accurate dimensions, SMT process suitable
• Great pulling force after reflow soldering
• Great for mechanical shocking and pressure
• Highly reliable in environments of temperature and humidity change
• Excellent Q characteristics
Applications
• Antennas
• Video, camera, and other electronic devices
• Antennas
• Video, camera, and other electronic devices
| Test Voltage | 100mV |
| Parameters Test Temp | 25°C |
| Operation Temp (Incl temp rise) | -40°C to +85°C |
| Storage Temp | -10~40°C |
| Storage Humidity | <60% RH |
| Resistance to Soldering Heat | 260°C for 10 sec |
| Rated Current | L data drop 30% typ. with Isat current |
| Temperature rise | 40°C typ. at Irms |
OWFWI1225 - series
RF inductorsInductors:
OWFWI1225
Product ID
Inductance
DCR [mohm]
Isat [A]
Irms [A]
Irated [mA]
Idc max [mA]
Q (min)
SRF [MHz]
Samples
Product ID
Inductance
0.42 uH
DCR max:
8100.00
IsatA table:
0.15
Irms A table
0.15
Custom 1:
Custom 2:
Q min:
27
SRF [MHz] min:
1.10
samples visning

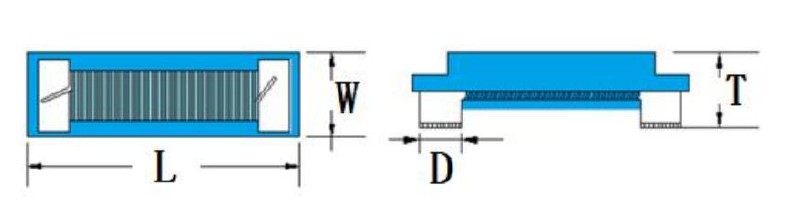

Shape and dimensions [mm]
A
B
C
D
E
F
G
H
I
J
Shape
A:
12.00
A tol:
Max.
B:
4.00
B tol:
Max.
C:
1.50
C tol:
Typ.
D:
2.80
D tol:
Max.
E:
3.60
E tol:
Ref
F:
2.30
F tol:
Ref
G:
7.00
G tol:
Ref
H:
H tol:
I:
I tol:
J:
J tol:
Shape:
Dimensions Image:
PAD Image:
Schematic Image:
click images to enlarge
