Common mode chokes

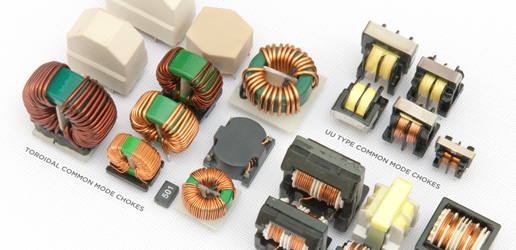

Ole Wolff offers a broad range of common mode chokes.
Typically used in AC-DC power converters, for EMI/RF suppression etc.
Custom solutions available! Ole wolff specializes in custom solutions at competitive prices to suit your specific project.
Product ID | L [mm] | W [mm] | H [mm] | Inductance [uH] | DCR max [mOhm] | Irms [A] (typ) | Product image | Samples |
|---|---|---|---|---|---|---|---|---|
OWICM5025RF-101
OWICM5025RF-101
| 4.8 | 5.0 | 2.5 | 9.00 | - |
| ||
OWICM5025RF-251
OWICM5025RF-251
| 4.8 | 5.0 | 2.5 | - | 14.00 | - |
| |
OWICM5025RF-351
OWICM5025RF-351
| 4.8 | 5.0 | 2.5 | - | 28.00 | - |
| |
OWICM5025RF-501
OWICM5025RF-501
| 4.8 | 5.0 | 2.5 | - | 19.00 | - |
| |
OWICM5025RF-102
OWICM5025RF-102
| 4.8 | 5.0 | 2.5 | - | 24.00 | - |
| |
OWICM5025RF-142
OWICM5025RF-142
| 4.8 | 5.0 | 2.5 | - | 40.00 | - |
| |
OWICM1513A-701
OWICM1513A-701
| 15.0 | 13.0 | 6.3 | - | 7.00 | 10.00 |
| |
OWICM1513A-551
OWICM1513A-551
| 15.0 | 13.0 | 6.3 | - | 6.00 | 10.00 |
| |
OWICM1513A-301
OWICM1513A-301
| 15.0 | 13.0 | 6.3 | - | 5.00 | 13.00 |
| |
OWICM1211A-272
OWICM1211A-272
| 12.0 | 10.8 | 6.6 | - | 50.00 | 1.50 |
| |
OWICM1211A-222
OWICM1211A-222
| 12.0 | 10.8 | 6.6 | - | 35.00 | 1.80 |
| |
OWICM1211A-102
OWICM1211A-102
| 12.0 | 10.8 | 6.6 | - | 14.00 | 6.00 |
| |
OWICM1211A-701
OWICM1211A-701
| 12.0 | 10.8 | 6.6 | - | 6.00 | 8.00 |
| |
OWICM1211A-800
OWICM1211A-800
| 12.0 | 10.8 | 6.6 | - | 4.00 | 10.00 |
| |
OWICM9070A-302
OWICM9070A-302
| 9.0 | 7.0 | 5.0 | - | 70.00 | 1.90 |
| |
OWICM9070A-272
OWICM9070A-272
| 9.0 | 7.0 | 5.0 | - | 65.00 | 2.00 |
| |
OWICM9070A-222
OWICM9070A-222
| 9.0 | 7.0 | 5.0 | - | 60.00 | 2.50 |
| |
OWICM9070A-102
OWICM9070A-102
| 9.0 | 7.0 | 5.0 | - | 13.00 | 4.00 |
| |
OWICM9070A-701
OWICM9070A-701
| 9.0 | 7.0 | 5.0 | - | 10.00 | 5.00 |
| |
OWICM9070A-501
OWICM9070A-501
| 9.0 | 7.0 | 5.0 | - | 8.00 | 5.50 |
| |
OWICM9070A-301
OWICM9070A-301
| 9.0 | 7.0 | 5.0 | - | 6.00 | 6.00 |
| |
OWICM7060A-302
OWICM7060A-302
| 7.0 | 6.0 | 4.0 | - | 75.00 | 0.90 |
| |
OWICM7060A-272
OWICM7060A-272
| 7.0 | 6.0 | 4.0 | - | 63.00 | 1.00 |
| |
OWICM7060A-132
OWICM7060A-132
| 7.0 | 6.0 | 4.0 | - | 21.00 | 2.50 |
| |
OWICM7060A-102
OWICM7060A-102
| 7.0 | 6.0 | 4.0 | - | 17.00 | 3.00 |
| |
OWICM7060A-701
OWICM7060A-701
| 7.0 | 6.0 | 4.0 | - | 15.00 | 4.00 |
| |
OWICM7060A-501
OWICM7060A-501
| 7.0 | 6.0 | 4.0 | - | 10.00 | 5.00 |
| |
OWICM7060A-301
OWICM7060A-301
| 7.0 | 6.0 | 4.0 | - | 10.00 | 5.00 |
| |
OWICM7060A-101
OWICM7060A-101
| 7.0 | 6.0 | 4.0 | - | 10.00 | 9.00 |
| |
OWICM7060A-400
OWICM7060A-400
| 7.0 | 6.0 | 4.0 | - | 5.00 | 15.00 |
| |
OWICM1513-701
OWICM1513-701
| 15.0 | 13.0 | 6.3 | - | 7.00 | 10.00 |
| |
OWICM1513-551
OWICM1513-551
| 15.0 | 13.0 | 6.3 | - | 6.00 | 10.00 |
| |
OWICM1513-301
OWICM1513-301
| 15.0 | 13.0 | 6.3 | - | 5.00 | 13.00 |
| |
OWICM1211-272
OWICM1211-272
| 12.0 | 10.8 | 6.6 | - | 50.00 | 1.50 |
| |
OWICM1211-222
OWICM1211-222
| 12.0 | 10.8 | 6.6 | - | 35.00 | 1.80 |
| |
OWICM1211-102
OWICM1211-102
| 12.0 | 10.8 | 6.6 | - | 14.00 | 6.00 |
| |
OWICM1211-701
OWICM1211-701
| 12.0 | 10.8 | 6.6 | - | 6.00 | 8.00 |
| |
OWICM1211-800
OWICM1211-800
| 12.0 | 10.8 | 6.6 | - | 4.00 | 10.00 |
| |
OWICM9070-302
OWICM9070-302
| 9.0 | 7.0 | 5.0 | - | 70.00 | 1.90 |
| |
OWICM9070-272
OWICM9070-272
| 9.0 | 7.0 | 5.0 | - | 65.00 | 2.00 |
| |
OWICM9070-222
OWICM9070-222
| 9.0 | 7.0 | 5.0 | - | 60.00 | 2.50 |
| |
OWICM9070-102
OWICM9070-102
| 9.0 | 7.0 | 5.0 | - | 13.00 | 4.00 |
| |
OWICM9070-701
OWICM9070-701
| 9.0 | 7.0 | 5.0 | - | 10.00 | 5.00 |
| |
OWICM9070-501
OWICM9070-501
| 9.0 | 7.0 | 5.0 | - | 8.00 | 5.50 |
| |
OWICM9070-301
OWICM9070-301
| 9.0 | 7.0 | 5.0 | - | 6.00 | 6.00 |
| |
OWICM7060-302
OWICM7060-302
| 7.0 | 6.0 | 4.0 | - | 75.00 | 0.90 |
| |
OWICM7060-272
OWICM7060-272
| 7.0 | 6.0 | 4.0 | - | 63.00 | 1.00 |
| |
OWICM7060-132
OWICM7060-132
| 7.0 | 6.0 | 4.0 | - | 21.00 | 2.50 |
| |
OWICM7060-102
OWICM7060-102
| 7.0 | 6.0 | 4.0 | - | 17.00 | 3.00 |
| |
OWICM7060-701
OWICM7060-701
| 7.0 | 6.0 | 4.0 | - | 15.00 | 4.00 |
| |
OWICM7060-501
OWICM7060-501
| 7.0 | 6.0 | 4.0 | - | 10.00 | 5.00 |
| |
OWICM7060-301
OWICM7060-301
| 7.0 | 6.0 | 4.0 | - | 10.00 | 5.00 |
| |
OWICM7060-101
OWICM7060-101
| 7.0 | 6.0 | 4.0 | - | 10.00 | 9.00 |
| |
OWICM7060-400
OWICM7060-400
| 7.0 | 6.0 | 4.0 | - | 5.00 | 15.00 |
| |
OWICM4520-142
OWICM4520-142
| 4.7 | 4.5 | 2.0 | - | 81.00 | 1.90 |
| |
OWICM4520-122
OWICM4520-122
| 4.7 | 4.5 | 2.0 | - | 74.00 | 2.00 |
| |
OWICM4520-102
OWICM4520-102
| 4.7 | 4.5 | 2.0 | - | 68.00 | 2.10 |
| |
OWICM4520-901
OWICM4520-901
| 4.7 | 4.5 | 2.0 | - | 68.00 | 2.10 |
| |
OWICM4520-701
OWICM4520-701
| 4.7 | 4.5 | 2.0 | - | 59.00 | 2.20 |
| |
OWICM4520-501
OWICM4520-501
| 4.7 | 4.5 | 2.0 | - | 55.00 | 2.40 |
| |
OWICM4520-401
OWICM4520-401
| 4.7 | 4.5 | 2.0 | - | 50.00 | 2.50 |
| |
OWICM4520-301
OWICM4520-301
| 4.7 | 4.5 | 2.0 | - | 39.00 | 3.00 |
| |
OWICM4520-231
OWICM4520-231
| 4.7 | 4.5 | 2.0 | - | 39.00 | 3.00 |
| |
OWICM4520-151
OWICM4520-151
| 4.7 | 4.5 | 2.0 | - | 38.00 | 3.10 |
| |
OWICM4520-900
OWICM4520-900
| 4.7 | 4.5 | 2.0 | - | 35.00 | 3.20 |
| |
OWISFT0905-100
OWISFT0905-100
| 9.2 | 6.0 | 5.0 | 10.00 | 80.00 | 1.60 |
| |
OWISFT0905-250
OWISFT0905-250
| 9.2 | 6.0 | 5.0 | 25.00 | 120.00 | 1.00 |
| |
OWISFT0905-400
OWISFT0905-400
| 9.2 | 6.0 | 5.0 | 40.00 | 250.00 | 0.90 |
| |
OWICM0905T-5R0
OWICM0905T-5R0
| 9.8 | 8.6 | 5.3 | 50.00 | 75.00 | - |
| |
OWISFT0905-510
OWISFT0905-510
| 9.2 | 6.0 | 5.0 | 51.00 | 160.00 | 0.80 |
| |
OWICM0905T-9R0
OWICM0905T-9R0
| 9.8 | 8.6 | 5.3 | 90.00 | 15.00 | - |
| |
OWICM1006T-121
OWICM1006T-121
| 10.0 | 8.7 | 6.5 | 120.00 | 25.00 | - |
| |
OWICM1006T-221
OWICM1006T-221
| 10.0 | 8.7 | 6.5 | 220.00 | 32.00 | - |
| |
OWISFT0905-251
OWISFT0905-251
| 9.2 | 6.0 | 5.0 | 250.00 | 130.00 | 1.20 |
| |
OWICM1006T-251
OWICM1006T-251
| 10.0 | 8.7 | 6.5 | 250.00 | 35.00 | - |
| |
OWICM1006T-471
OWICM1006T-471
| 10.0 | 8.7 | 6.5 | 470.00 | 65.00 | - |
| |
OWISFT0905-501
OWISFT0905-501
| 9.2 | 6.0 | 5.0 | 500.00 | 150.00 | 1.00 |
| |
OWISFT0905-102
OWISFT0905-102
| 9.2 | 6.0 | 5.0 | 1000.00 | 310.00 | 0.80 |
| |
OWICM1006T-102
OWICM1006T-102
| 10.0 | 8.7 | 6.5 | 1000.00 | 180.00 | - |
| |
OWISFT0905-202
OWISFT0905-202
| 9.2 | 6.0 | 5.0 | 2000.00 | 420.00 | 0.60 |
| |
OWICM1006C-222
OWICM1006C-222
| 10.0 | 8.7 | 6.5 | 2200.00 | 300.00 | - |
| |
OWICM1006C-332
OWICM1006C-332
| 10.0 | 8.7 | 6.5 | 3300.00 | 360.00 | - |
| |
OWICM1006C-392
OWICM1006C-392
| 10.0 | 8.7 | 6.5 | 3900.00 | 540.00 | - |
| |
OWISFT0905-472
OWISFT0905-472
| 9.2 | 6.0 | 5.0 | 4700.00 | 750.00 | 0.50 |
| |
OWICM1006C-472
OWICM1006C-472
| 10.0 | 8.7 | 6.5 | 4700.00 | 720.00 | - |
| |
OWISFT0905-652
OWISFT0905-652
| 9.2 | 6.0 | 5.0 | 6500.00 | 950.00 | 0.40 |
| |
OWISFT0905-103
OWISFT0905-103
| 9.2 | 6.0 | 5.0 | 10000.00 | 1200.00 | 0.35 |
| |
OWISFT0905-203
OWISFT0905-203
| 9.2 | 6.0 | 5.0 | 20000.00 | 2600.00 | 0.20 |
|
