Magnetic products
Description
SMD CMC, Molded Type. Two lines. Inductance data 85nH. Rated Current 68A Typ. Insulation voltage 100Vdc.
SMD CMC, Molded Type. Two lines. Inductance data 85nH. Rated Current 68A Typ. Insulation voltage 100Vdc.
Features
• Molded high current inductor
• Excellent shielded and stability on characteristics
• VR inductor with core low loss
• High saturation characteristics core
• Close magnetic circuit design reduces leakage flux
• High precision and low DCR
• Operating frequency up to 2MHz
• RoHS and REACH compliant
• Molded high current inductor
• Excellent shielded and stability on characteristics
• VR inductor with core low loss
• High saturation characteristics core
• Close magnetic circuit design reduces leakage flux
• High precision and low DCR
• Operating frequency up to 2MHz
• RoHS and REACH compliant
Applications
• Transformer-Based Voltage Regulators
• Al calculation modules
• PCs, Servers, IPC, VRM and EVRD
• Data networks and data storage systems
• Graphics cards, battery power systems and PMIC control
• POL (Point of Load) modules
• Security systems and others RF modules
• Transformer-Based Voltage Regulators
• Al calculation modules
• PCs, Servers, IPC, VRM and EVRD
• Data networks and data storage systems
• Graphics cards, battery power systems and PMIC control
• POL (Point of Load) modules
• Security systems and others RF modules
| Test Voltage | 1V |
| Parameters Test Temp | 25°C |
| Operation Temp (Including temperature Rise) | -55℃ to +125℃ |
| Storage Temp | 0~40℃ |
| Storage Humidity | ‹70% RH |
| Resistance to Soldering Heat | 260℃ for 10 sec |
| Rated Current | L drop 20% typ. at Isat current |
| Temperature Rise | Temperature Rising : 40℃ typ. at Irms |
OWIMB100760-85N
Molded Common Mode FiltersAll in series
Product ID
Inductance
Impedance
DCR [mohm]
Isat [A]
Test condition
SRF [MHz]
Irms [A]
Custom 1
Samples
Inductors:
Product ID
inductance table
85.00 nH
impedance table
-
DCR max:
0.16
IsatA table:
75.00
test condition table
-
SRF [MHz] min:
Irms A table
58.00
Custom 1_products
samples visning
L tol note:

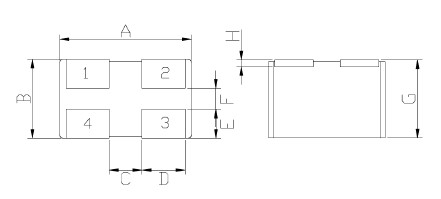

Shape and dimensions [mm]
A
B
C
D
E
F
G
H
I
J
Shape
A:
9.80
A tol:
±0.2
B:
7.00
B tol:
±0.2
C:
1.70
C tol:
±0.2
D:
3.60
D tol:
±0.2
E:
6.30
E tol:
±0.2
F:
1.40
F tol:
±0.2
G:
5.80
G tol:
±0.2
H:
0.70
H tol:
±0.2
I:
I tol:
J:
J tol:
Shape:
a
b
c
d
aa
7.00
aa tol
Ref
bb
1.70
bb tol
Ref
cc
8.90
cc tol
Ref
dd
1.40
dd tol
Ref
Dimension remarks:
Recommended dimension a,b,c,d for PCB pad
Dimensions Image:
PAD Image:
Schematic Image:
click images to enlarge
