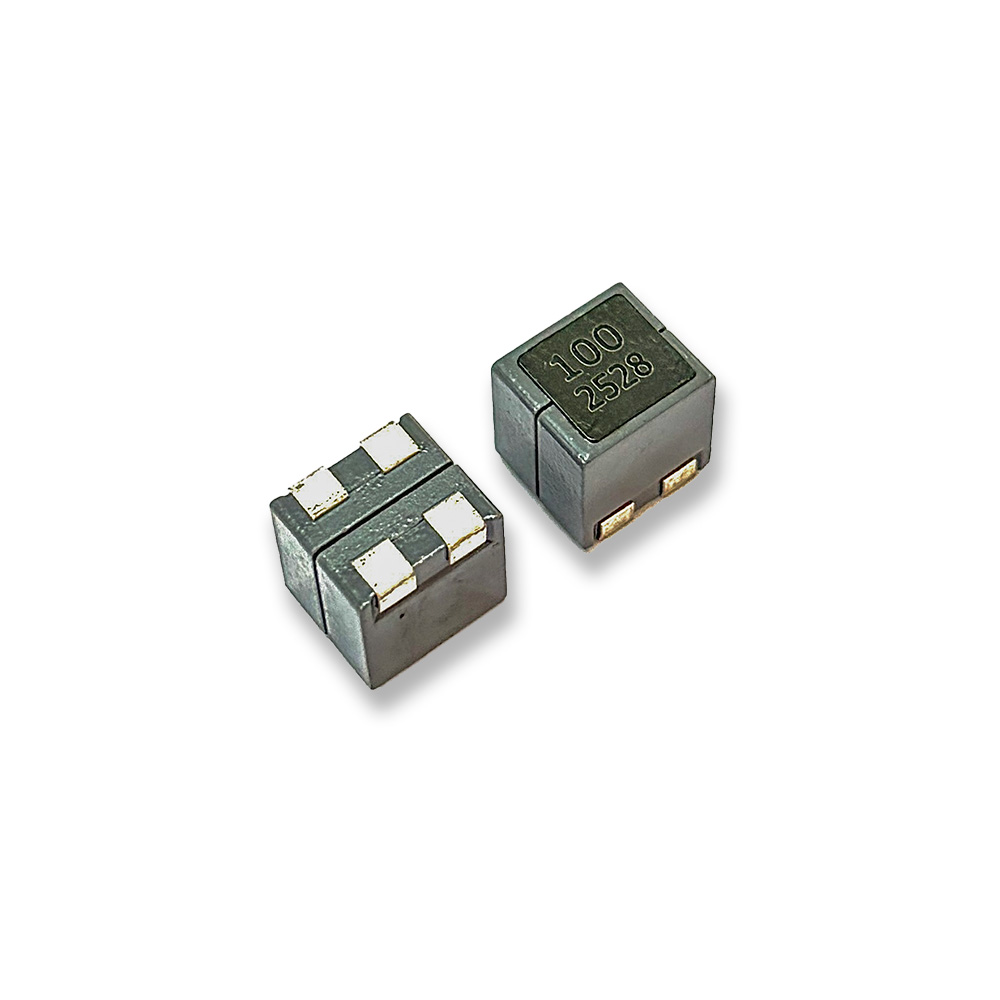

Metal Molded High-Current dual Inductors. Inductance 1.0 - 22uH, Rated Current 36 - 12A Typ.
Metal Molded High-Current dual Inductors. Inductance 1.0 - 22uH, Rated Current 36 - 12A Typ.
Features
• Molded dual inductor
• Excellent shielded and stability on characteristics
• High Current carrying capacity
• Low DCR
• High efficiency
• High reliability
• RoHS and REACH compliant
• Molded dual inductor
• Excellent shielded and stability on characteristics
• High Current carrying capacity
• Low DCR
• High efficiency
• High reliability
• RoHS and REACH compliant
Applications
• Amplifier inductors
• Acoustic devices
• Automative acoustic applications
• Amplifier inductors
• Acoustic devices
• Automative acoustic applications
| Test Voltage | 1V |
| Parameters Test Temp | 25°C |
| Operation Temp (Incl temp rise) | -55℃ to +125℃ |
| Storage Temp | 0~40℃ |
| Storage Humidity | ‹70% RH |
| Resistance to Soldering Heat | 260℃ for 10 sec |
| Rated Current | L drop 30% typ.at Isat current |
| Temperature rise | 40℃ typ. at Irms |
OWIPAM6775 - series
Metal-Molded high-Current dual inductorsInductors:
OWIPAM6775
Product ID
Inductance
DCR [mohm]
Isat [A]
Irms [A]
Test frequency
Q (min)
SRF [MHz]
Custom 1
Samples
Product ID
Inductance
22.00 uH
DCR max:
56.00
IsatA table:
7.30
Irms A table
3.20
Test frequency:
Q min:
SRF [MHz] min:
Custom 1:
Hi-Pot (Pin1 to Pin2): 500V/5mA/3s
samples visning
Product ID
Inductance
15.00 uH
DCR max:
40.80
IsatA table:
7.70
Irms A table
4.00
Test frequency:
Q min:
SRF [MHz] min:
Custom 1:
Hi-Pot (Pin1 to Pin2): 500V/5mA/3s
samples visning
Product ID
Inductance
10.00 uH
DCR max:
22.00
IsatA table:
10.00
Irms A table
5.20
Test frequency:
Q min:
SRF [MHz] min:
Custom 1:
Hi-Pot (Pin1 to Pin2): 500V/5mA/3s
samples visning
Product ID
Inductance
5.60 uH
DCR max:
16.80
IsatA table:
16.00
Irms A table
5.80
Test frequency:
Q min:
SRF [MHz] min:
Custom 1:
Hi-Pot (Pin1 to Pin2): 500V/5mA/3s
samples visning
Product ID
Inductance
3.30 uH
DCR max:
8.60
IsatA table:
23.40
Irms A table
8.00
Test frequency:
Q min:
SRF [MHz] min:
Custom 1:
Hi-Pot (Pin1 to Pin2): 500V/5mA/3s
samples visning
Product ID
Inductance
2.20 uH
DCR max:
6.00
IsatA table:
27.50
Irms A table
9.00
Test frequency:
Q min:
SRF [MHz] min:
Custom 1:
Hi-Pot (Pin1 to Pin2): 500V/5mA/3s
samples visning
Product ID
Inductance
1.00 uH
DCR max:
4.00
IsatA table:
43.00
Irms A table
12.00
Test frequency:
Q min:
SRF [MHz] min:
Custom 1:
Hi-Pot (Pin1 to Pin2): 500V/5mA/3s
samples visning
Shape and dimensions [mm]
A
B
C
D
E
F
G
H
I
J
Shape
A:
6.90
A tol:
±0.3
B:
7.60
B tol:
±0.3
C:
7.30
C tol:
±0.2
D:
1.65
D tol:
±0.2
E:
2.00
E tol:
±0.2
F:
3.40
F tol:
±0.2
G:
1.60
G tol:
±0.2
H:
H tol:
I:
I tol:
J:
J tol:
Shape:
Dimensions Image:
PAD Image:
Schematic Image:
click images to enlarge
