Magnetic products
Description

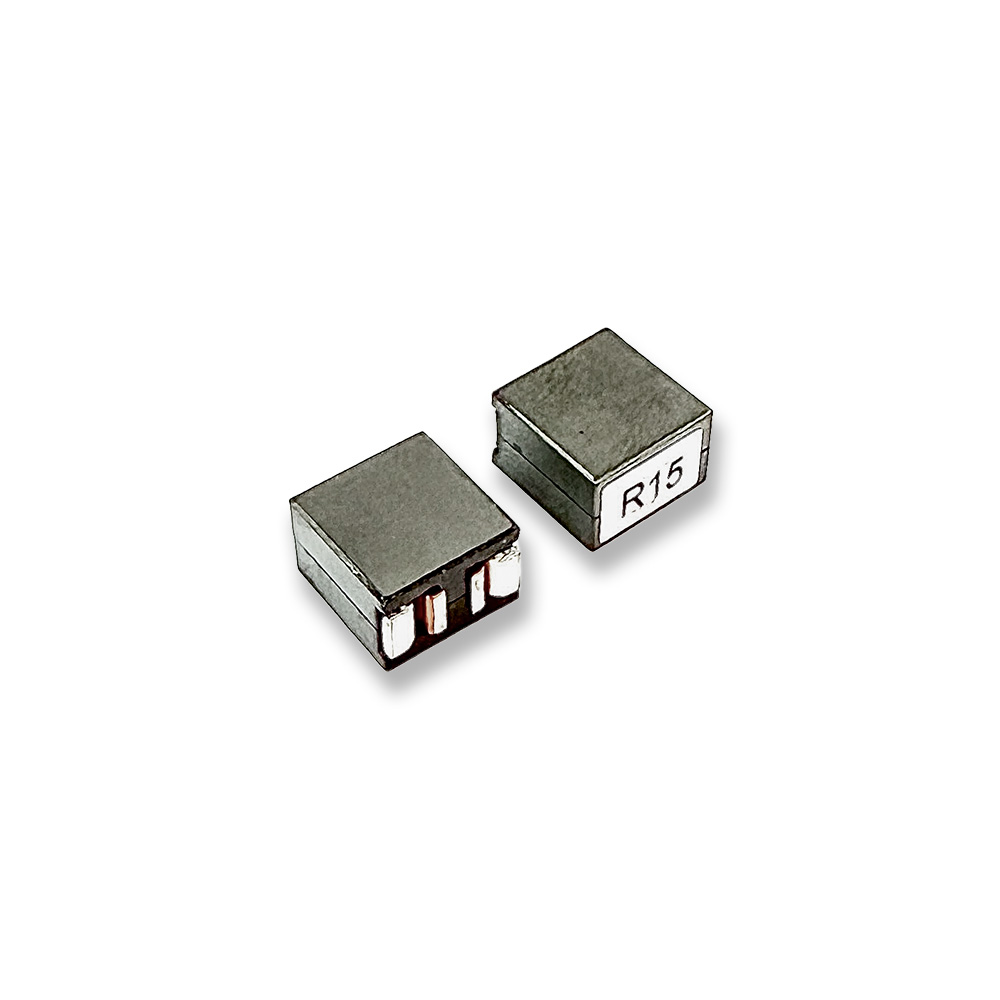

SMD Power Dual Inductor. Trans-inductor Voltage regulator. Rate Current over 75A, Inductance 100 to 150nH, height: 10mm Max., footprint 12x6.4mm
SMD Power Dual Inductor. Trans-inductor Voltage regulator. Rate Current over 75A, Inductance 100 to 150nH, height: 10mm Max., footprint 12x6.4mm
Features
• High current inductor
• VR inductor with core low loss
• High saturation characteristics core
• Close magnetic circuit design reduces leakage flux
• High precision and low DCR
• Operating frequency up to 2MHz
• RoHS and REACH compliant
• High current inductor
• VR inductor with core low loss
• High saturation characteristics core
• Close magnetic circuit design reduces leakage flux
• High precision and low DCR
• Operating frequency up to 2MHz
• RoHS and REACH compliant
Applications
• Transformer-based Voltage regulators
• Al calculation module
• PCs, Servers, IPC, VRM and EVRD
• Data networks and data storage system
• Graphics card, battery power system and PMIC control
• POL (Point of Load) Module
• Security system and others RF modules
• Transformer-based Voltage regulators
• Al calculation module
• PCs, Servers, IPC, VRM and EVRD
• Data networks and data storage system
• Graphics card, battery power system and PMIC control
• POL (Point of Load) Module
• Security system and others RF modules
| Test Voltage | 1.0 |
| Parameters Test Temp | 25℃ |
| Operation Temp (Incl temp rise) | -20℃~125℃ |
| Storage Temp | 0-40℃ |
| Storage Humidity | ≤70% |
| Resistance to Soldering Heat | 260℃ for 10 sec |
| Rated Current | L data drop about 20% with Isat loading |
| Temperature rise | Temperature Rising : 40℃ typ. at Irms |
OWTLVR090610S - series
Ferrite super high-current (dual) inductorInductors:
OWTLVR090610S
Product ID
Inductance
DCR [mohm]
Isat [A]
Irms [A]
Test frequency
Q (min)
SRF [MHz]
Custom 1
Samples
Product ID
Inductance
15.00 nh
DCR max:
0.45
IsatA table:
60.00
Irms A table
75.00
Test frequency:
500KHz 0.25V
Q min:
SRF [MHz] min:
Custom 1:
Low Loss core
samples visning
samples visning2
Product ID
Inductance
12.00 nh
DCR max:
0.45
IsatA table:
75.00
Irms A table
75.00
Test frequency:
500KHz 0.25V
Q min:
SRF [MHz] min:
Custom 1:
Low Loss core
samples visning
samples visning2
Product ID
Inductance
10.00 nh
DCR max:
0.45
IsatA table:
92.00
Irms A table
75.00
Test frequency:
500KHz 0.25V
Q min:
SRF [MHz] min:
Custom 1:
Low Loss core
samples visning
samples visning2

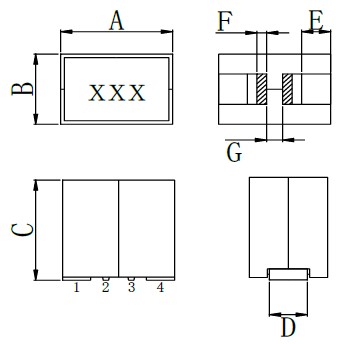

Shape and dimensions [mm]
A
B
C
D
E
F
G
H
I
J
Shape
A:
9.60
A tol:
Max
B:
6.40
B tol:
Max
C:
10.00
C tol:
Max
D:
3.40
D tol:
Max
E:
1.80
E tol:
Max
F:
1.00
F tol:
Max
G:
1.60
G tol:
Ref
H:
12.30
H tol:
Ref
I:
7.95
I tol:
Ref
J:
2.45
J tol:
Ref
Shape:
Dimensions Image:
PAD Image:
Schematic Image:
click images to enlarge
