Magnetic products
Description
Inductor series with wire wound ceramic chip
Inductor series with wire wound ceramic chip
Features
Ceramic body and wire wound construction provides high SRFs
Exceptional Q value even at high frequencies
High Q value
Low DC resistance for low loss
Ceramic body and wire wound construction provides high SRFs
Exceptional Q value even at high frequencies
High Q value
Low DC resistance for low loss
Applications
RF products for cellular phone
GPS receivers
Base stations
Wireless LAN and repeaters
Mouse/keyboard
Earphones
Remote controls
Security systems etc.
RF products for cellular phone
GPS receivers
Base stations
Wireless LAN and repeaters
Mouse/keyboard
Earphones
Remote controls
Security systems etc.
| Test Voltage | 50mV |
| Parameters Test Temp | 25°C |
| Operation Temp (Incl temp rise) | -40°C to +125°C |
| Storage Temp | 2 to 40°C |
| Storage Humidity | <70% RH |
| Resistance to Soldering Heat | 260°C for 10 sec |
| Rated Current | 40°C typ. at Irms |
| Temperature Rise |
OWCWI201209C-2N2
Wire wound ceramic chipAll in series
Product ID
Inductance
DCR [mOhm]
Isat [A]
Irms [A]
Irated [mA]
Idc max [mA]
Q (min)
SRF [MHz]
Samples
Inductors:
Product ID
OWCWI201209C-2N2
Inductance
2.20 nH
DCR max:
30.00
IsatA table:
-
Irms [A] (typ):
Custom 1:
Custom 2:
800
Q min:
50
SRF [MHz] min:
8500
samples visning
-
L tol note:
When ordering please specify tolerance code: J=±5%, K=±10%, M=±20%

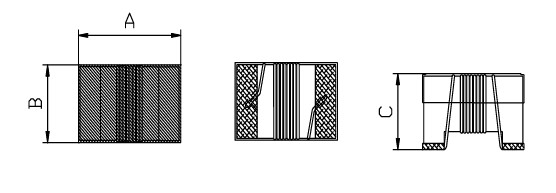

Shape and dimensions [mm]
A
B
C
D
E
F
G
H
I
J
Shape
A:
2.30
A tol:
Max
B:
1.70
B tol:
Max
C:
1.52
C tol:
Max
D:
0.5
D tol:
Ref
E:
E tol:
F:
F tol:
G:
G tol:
H:
1.78
H tol:
Ref
I:
1.02
I tol:
Ref
J:
0.76
J tol:
Ref
Shape:
Dimension remarks:
Dimensions Image:
PAD Image:
Schematic Image:
click images to enlarge
