Magnetic products
Description

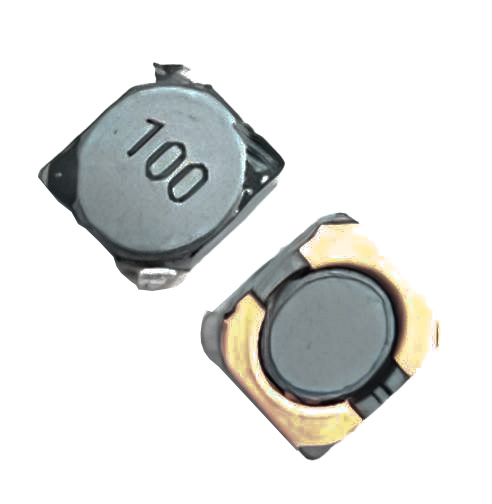

Gold plating metal base, 2pins
Gold plating metal base, 2pins
Features
• Shielded power inductor
• Various high power inductors are superior to be high saturation for surface mounting
• RoHS and REACH compliant
• Shielded power inductor
• Various high power inductors are superior to be high saturation for surface mounting
• RoHS and REACH compliant
Applications
• Power supply for VTR, OA equipment
• LCD TV sets
• Notebooks and PCs
• Portable communication equipment
• DC/DC converters
• Graphic cards
• Power supply for VTR, OA equipment
• LCD TV sets
• Notebooks and PCs
• Portable communication equipment
• DC/DC converters
• Graphic cards
| Test Voltage | 0.25V |
| Parameters Test Temp | 25°C |
| Operation Temp (Incl temp rise) | -40°C to +125°C |
| Storage Temp | 0~40°C |
| Storage Humidity | <70% RH |
| Resistance to Soldering Heat | 260°C for 10 sec |
| Rated Current | L drops off 35% typ at Isat |
| Temperature Rise | 40℃ typ. at Irms |
OWIRH5D18-
Shielded inductorsAll in series
Product ID
Inductance
DCR [mOhm]
Isat [A]
Irms [A]
Irated [mA]
Idc max [mA]
Q (min)
SRF [MHz]
Samples
Inductors:
L tol note:
When ordering please specify tolerance code Tolerance: K=±10%, L=±15%, M=±20%, N=±30%
Shape and dimensions [mm]
A
B
C
D
E
F
G
H
I
J
Shape
A:
5.70
A tol:
±0.3
B:
5.70
B tol:
±0.3
C:
2.00
C tol:
Max.
D:
8.20
D tol:
Ref
E:
2.00
E tol:
Ref
F:
F tol:
G:
G tol:
H:
2.10
H tol:
Ref
I:
2.00
I tol:
Ref
J:
6.30
J tol:
Ref
Shape:
Dimension remarks:
Recommended dimension H, I, J for PCB pad
Dimensions Image:
PAD Image:
Schematic Image:
click images to enlarge
