Magnetic products

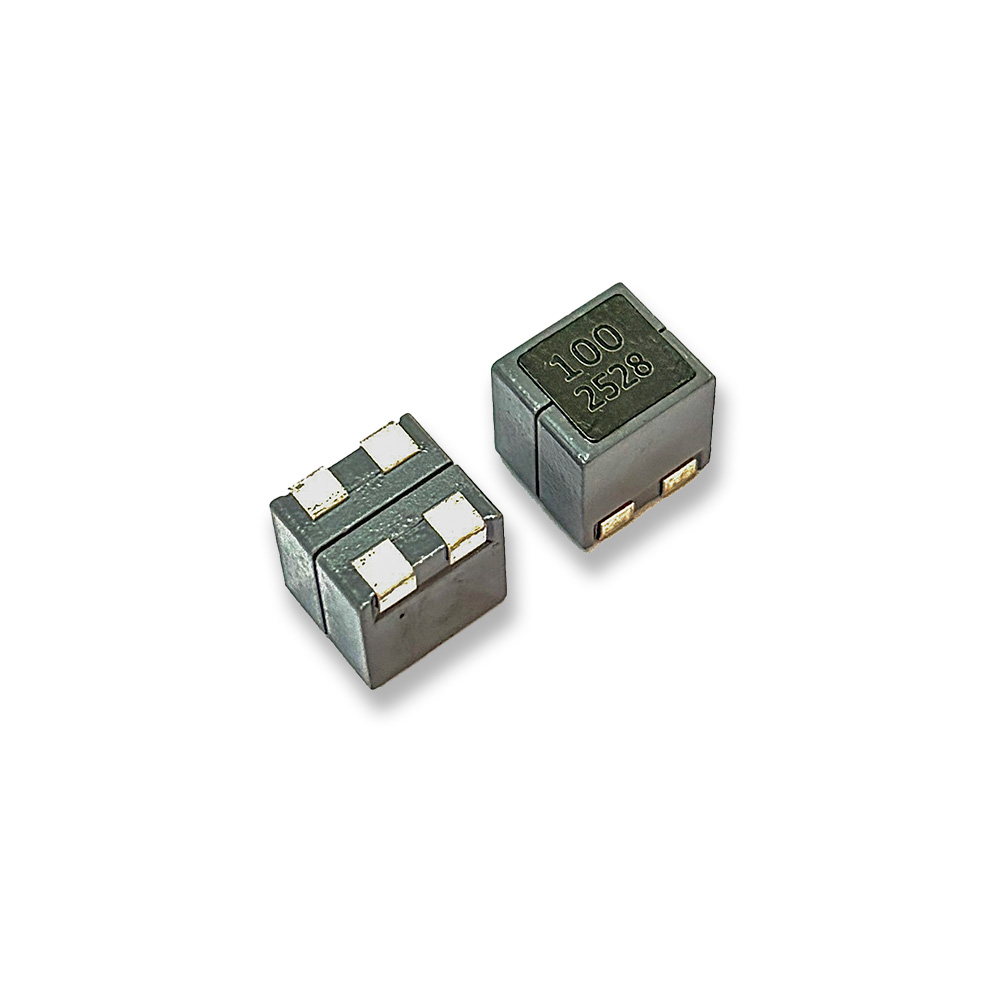

SMD Power Inductors
Product ID | L [mm] | W [mm] | H [mm] | Inductance [uH] | DCR max [mOhm] | Isat [A] (typ) | Irms [A] (typ) | Product image | Samples |
|---|---|---|---|---|---|---|---|---|---|
OWCWI160808-75N
OWCWI160808-75N
| 1.8 | 1.1 | 1.0 | 75.00 | 600.00 | - | - |
| |
OWCWI201209-75N
OWCWI201209-75N
| 2.3 | 1.7 | 1.5 | 75.00 | 400.00 | - | - |
| |
OWINR8040-750
OWINR8040-750
| 8.0 | 8.0 | 4.2 | 75.00 | 274.00 | 1.35 | 1.20 |
| |
OWINR6045-750
OWINR6045-750
| 6.0 | 6.0 | 4.5 | 75.00 | 397.00 | 1.15 | 0.95 |
| |
OWINR6028-750
OWINR6028-750
| 6.0 | 6.0 | 3.0 | 75.00 | 533.00 | 0.90 | 0.81 |
| |
OWINR4030-750
OWINR4030-750
| 4.0 | 4.0 | 3.0 | 75.00 | 1326.00 | 0.70 | 0.48 |
| |
OWINR4020-750
OWINR4020-750
| 4.0 | 4.0 | 2.1 | 75.00 | 1510.00 | 0.70 | 0.35 |
| |
OWIRH73-820
OWIRH73-820
| 7.5 | 7.5 | 3.5 | 82.00 | 690.00 | 1.00 | - |
| |
OWIRH74-820
OWIRH74-820
| 7.5 | 7.5 | 4.5 | 82.00 | 430.00 | 1.00 | - |
| |
OWIRH124-820
OWIRH124-820
| 12.5 | 12.5 | 4.5 | 82.00 | 260.00 | 1.00 | - |
| |
OWIRH125-820
OWIRH125-820
| 12.5 | 12.5 | 6.0 | 82.00 | 140.00 | 1.00 | - |
| |
OWIRH127-820
OWIRH127-820
| 12.5 | 12.5 | 8.0 | 82.00 | 160.00 | 2.00 | - |
| |
OWIRH129-820
OWIRH129-820
| 12.5 | 12.5 | 10.0 | 82.00 | 99.00 | 3.00 | - |
| |
OWIRH4D28-820
OWIRH4D28-820
| 4.7 | 4.7 | 3.0 | 82.00 | 915.00 | - | - |
| |
OWIRH5D18-820
OWIRH5D18-820
| 5.7 | 5.7 | 2.0 | 82.00 | 978.00 | - | - |
| |
OWIRH5D28-820
OWIRH5D28-820
| 5.7 | 5.7 | 3.0 | 82.00 | 463.00 | - | - |
| |
OWIRH6D28-820
OWIRH6D28-820
| 6.7 | 6.7 | 3.0 | 82.00 | 390.00 | 1.00 | - |
| |
OWIRH6D38-820
OWIRH6D38-820
| 6.7 | 6.7 | 4.0 | 82.00 | 324.00 | 1.00 | - |
| |
OWIRH103R-820
OWIRH103R-820
| 10.3 | 10.5 | 3.1 | 82.00 | 494.00 | 1.00 | - |
| |
OWIRH104R-820
OWIRH104R-820
| 10.3 | 10.5 | 4.0 | 82.00 | 300.00 | 1.00 | - |
| |
OWIRH105R-820
OWIRH105R-820
| 10.3 | 10.5 | 5.1 | 82.00 | 227.00 | 2.00 | - |
| |
OWI43-820
OWI43-820
| 4.5 | 4.0 | 3.2 | 82.00 | 1350.00 | - | - |
| |
OWI54-820
OWI54-820
| 5.8 | 5.2 | 4.5 | 82.00 | 600.00 | 1.00 | - |
| |
OWI75-820
OWI75-820
| 7.8 | 7.0 | 5.0 | 82.00 | 370.00 | 1.00 | - |
| |
OWI105-820
OWI105-820
| 10.0 | 9.0 | 5.4 | 82.00 | 250.00 | 1.00 | - |
| |
OWCWI100505-82N
OWCWI100505-82N
| 1.2 | 0.7 | 0.6 | 82.00 | 1700.00 | - | - |
| |
OWCWI160808-82N
OWCWI160808-82N
| 1.8 | 1.1 | 1.0 | 82.00 | 550.00 | - | - |
| |
OWCWI201209-82N
OWCWI201209-82N
| 2.3 | 1.7 | 1.5 | 82.00 | 420.00 | - | - |
| |
OWCWI252018-82N
OWCWI252018-82N
| 2.9 | 2.8 | 2.1 | 82.00 | 220.00 | - | - |
| |
OWCWI322522-82N
OWCWI322522-82N
| 3.5 | 2.9 | 2.3 | 82.00 | 200.00 | - | - |
| |
OWA1812-82N
OWA1812-82N
| 4.7 | 3.5 | 3.5 | 82.00 | 8.90 | - | 2.60 |
| |
OWA1008-82NK
OWA1008-82NK
| 3.2 | 1.9 | 2.2 | 82.00 | 51.50 | - | 0.32 |
| |
OWINR8065-820
OWINR8065-820
| 8.0 | 8.0 | 6.8 | 82.00 | 300.00 | 2.50 | 1.40 |
| |
OWINR8050-820
OWINR8050-820
| 8.0 | 8.0 | 5.2 | 82.00 | 305.00 | 1.40 | 1.25 |
| |
OWINR8040-820
OWINR8040-820
| 8.0 | 8.0 | 4.2 | 82.00 | 293.00 | 1.30 | 1.15 |
| |
OWINR6045-820
OWINR6045-820
| 6.0 | 6.0 | 4.5 | 82.00 | 443.00 | 1.05 | 0.90 |
| |
OWINR6028-820
OWINR6028-820
| 6.0 | 6.0 | 3.0 | 82.00 | 650.00 | 0.80 | 0.70 |
| |
OWINR5020-820
OWINR5020-820
| 5.0 | 5.0 | 2.0 | 82.00 | 1158.00 | 0.65 | 0.50 |
| |
OWINR4030-820
OWINR4030-820
| 4.0 | 4.0 | 3.0 | 82.00 | 1378.00 | 0.66 | 0.47 |
| |
OWINR4020-820
OWINR4020-820
| 4.0 | 4.0 | 2.1 | 82.00 | 1520.00 | 0.50 | 0.34 |
| |
OWINR4012-820
OWINR4012-820
| 4.0 | 4.0 | 1.4 | 82.00 | 2782.00 | 0.28 | 0.26 |
| |
OWINR3012-820
OWINR3012-820
| 3.0 | 3.0 | 1.3 | 82.00 | 3302.00 | 0.17 | 0.27 |
| |
OWIHP2313M-820
OWIHP2313M-820
| 23.5 | 22.0 | 12.6 | 82.00 | 34.20 | 9.00 | 12.00 |
| |
OWIHP1265M-820
OWIHP1265M-820
| 13.5 | 12.6 | 6.5 | 82.00 | 135.00 | 4.50 | 4.00 |
| |
OWIHP1040M-820
OWIHP1040M-820
| 11.0 | 10.0 | 3.8 | 82.00 | 285.00 | 2.80 | 2.30 |
| |
OWIHP1260A-820
OWIHP1260A-820
| 13.5 | 12.6 | 5.7 | 82.00 | 161.00 | 8.50 | 4.50 |
| |
OWA132-09T
OWA132-09T
| 9.5 | 4.5 | 4.6 | 90.00 | 14.00 | - | 3.50 |
| |
OWINR8040-910
OWINR8040-910
| 8.0 | 8.0 | 4.2 | 91.00 | 354.00 | 1.20 | 1.05 |
| |
OWINR6045-910
OWINR6045-910
| 6.0 | 6.0 | 4.5 | 91.00 | 467.00 | 1.00 | 0.85 |
| |
OWINR4030-910
OWINR4030-910
| 4.0 | 4.0 | 3.0 | 91.00 | 1430.00 | 0.65 | 0.46 |
| |
OWIRH73-101
OWIRH73-101
| 7.5 | 7.5 | 3.5 | 100.00 | 790.00 | 1.00 | - |
| |
OWIRH74-101
OWIRH74-101
| 7.5 | 7.5 | 4.5 | 100.00 | 610.00 | 1.00 | - |
| |
OWIRH124-101
OWIRH124-101
| 12.5 | 12.5 | 4.5 | 100.00 | 308.00 | 1.00 | - |
| |
OWIRH125-101
OWIRH125-101
| 12.5 | 12.5 | 6.0 | 100.00 | 160.00 | 1.00 | - |
| |
OWIRH127-101
OWIRH127-101
| 12.5 | 12.5 | 8.0 | 100.00 | 220.00 | 2.00 | - |
| |
OWIRH129-101
OWIRH129-101
| 12.5 | 12.5 | 10.0 | 100.00 | 126.00 | 2.00 | - |
| |
OWIRH4D18-101
OWIRH4D18-101
| 4.7 | 4.7 | 2.0 | 100.00 | 2000.00 | - | - |
| |
OWIRH4D28-101
OWIRH4D28-101
| 4.7 | 4.7 | 3.0 | 100.00 | 1020.00 | - | - |
| |
OWIRH5D18-101
OWIRH5D18-101
| 5.7 | 5.7 | 2.0 | 100.00 | 1200.00 | - | - |
| |
OWIRH5D28-101
OWIRH5D28-101
| 5.7 | 5.7 | 3.0 | 100.00 | 520.00 | - | - |
| |
OWIRH6D28-101
OWIRH6D28-101
| 6.7 | 6.7 | 3.0 | 100.00 | 535.00 | 1.00 | - |
| |
OWIRH6D38-101
OWIRH6D38-101
| 6.7 | 6.7 | 4.0 | 100.00 | 358.00 | 1.00 | - |
| |
OWIRH103R-101
OWIRH103R-101
| 10.3 | 10.5 | 3.1 | 100.00 | 683.00 | 1.00 | - |
| |
OWIRH104R-101
OWIRH104R-101
| 10.3 | 10.5 | 4.0 | 100.00 | 304.00 | 1.00 | - |
| |
OWIRH105R-101
OWIRH105R-101
| 10.3 | 10.5 | 5.1 | 100.00 | 253.00 | 1.00 | - |
| |
OWI3015-101
OWI3015-101
| 3.5 | 3.0 | 1.6 | 100.00 | 2870.00 | - | - |
| |
OWI32-101
OWI32-101
| 3.5 | 3.0 | 2.1 | 100.00 | 2800.00 | - | - |
| |
OWI43-101
OWI43-101
| 4.5 | 4.0 | 3.2 | 100.00 | 1520.00 | - | - |
| |
OWI54-101
OWI54-101
| 5.8 | 5.2 | 4.5 | 100.00 | 700.00 | 1.00 | - |
| |
OWI75-101
OWI75-101
| 7.8 | 7.0 | 5.0 | 100.00 | 430.00 | 1.00 | - |
| |
OWI105-101
OWI105-101
| 10.0 | 9.0 | 5.4 | 100.00 | 350.00 | 1.00 | - |
| |
OWI0403F-101
OWI0403F-101
| 6.6 | 4.5 | 2.9 | 100.00 | 1270.00 | - | 0.30 |
| |
OWI0802F-101
OWI0802F-101
| 13.2 | 9.4 | 3.1 | 100.00 | 690.00 | 1.00 | 0.70 |
| |
OWI0804F-101
OWI0804F-101
| 13.2 | 9.4 | 5.2 | 100.00 | 280.00 | 1.00 | 1.30 |
| |
OWI0810F-101
OWI0810F-101
| 13.2 | 9.4 | 11.4 | 100.00 | 220.00 | 3.00 | 1.20 |
| |
OWI1206F-101
OWI1206F-101
| 18.5 | 15.2 | 7.1 | 100.00 | 210.00 | 3.00 | 1.80 |
| |
OWI1211F-101
OWI1211F-101
| 19.0 | 15.7 | 11.4 | 100.00 | 130.00 | 6.00 | 2.80 |
| |
OWCWI100505-R10
OWCWI100505-R10
| 1.2 | 0.7 | 0.6 | 100.00 | 2000.00 | - | - |
| |
OWCWI160808-R10
OWCWI160808-R10
| 1.8 | 1.1 | 1.0 | 100.00 | 630.00 | - | - |
| |
OWCWI201209-R10
OWCWI201209-R10
| 2.3 | 1.7 | 1.5 | 100.00 | 460.00 | - | - |
| |
OWCWI252018-R10
OWCWI252018-R10
| 2.9 | 2.8 | 2.1 | 100.00 | 560.00 | - | - |
| |
OWCWI322522-R10
OWCWI322522-R10
| 3.5 | 2.9 | 2.3 | 100.00 | 210.00 | - | - |
| |
OWA1812-R10
OWA1812-R10
| 4.7 | 3.5 | 3.5 | 100.00 | 10.00 | - | 2.50 |
| |
OWA1008-R10K
OWA1008-R10K
| 3.2 | 1.9 | 2.2 | 100.00 | 55.50 | - | 0.32 |
| |
OWINR8065-101
OWINR8065-101
| 8.0 | 8.0 | 6.8 | 100.00 | 390.00 | 2.30 | 1.30 |
| |
OWINR8040-101
OWINR8040-101
| 8.0 | 8.0 | 4.2 | 100.00 | 377.00 | 1.15 | 1.00 |
| |
OWINR6045-101
OWINR6045-101
| 6.0 | 6.0 | 4.5 | 100.00 | 563.00 | 0.95 | 0.80 |
| |
OWINR6028-101
OWINR6028-101
| 6.0 | 6.0 | 3.0 | 100.00 | 650.00 | 0.65 | 0.70 |
| |
OWINR6020-101
OWINR6020-101
| 6.0 | 6.0 | 2.0 | 100.00 | 1430.00 | 0.50 | 0.40 |
| |
OWINR5040-101
OWINR5040-101
| 5.0 | 5.0 | 4.0 | 100.00 | 728.00 | 0.75 | 0.70 |
| |
OWINR5020-101
OWINR5020-101
| 5.0 | 5.0 | 2.0 | 100.00 | 1430.00 | 0.53 | 0.53 |
| |
OWINR4030-101
OWINR4030-101
| 4.0 | 4.0 | 3.0 | 100.00 | 1495.00 | 0.60 | 0.45 |
| |
OWINR4020-101
OWINR4020-101
| 4.0 | 4.0 | 2.1 | 100.00 | 2020.00 | 0.48 | 0.31 |
| |
OWINR4018-101
OWINR4018-101
| 4.0 | 4.0 | 1.8 | 100.00 | 2275.00 | 0.40 | 0.25 |
| |
OWINR4012-101
OWINR4012-101
| 4.0 | 4.0 | 1.4 | 100.00 | 2873.00 | 0.25 | 0.25 |
| |
OWINR3015C-101
OWINR3015C-101
| 3.0 | 3.0 | 1.5 | 100.00 | 2920.00 | 0.23 | 0.25 |
| |
OWINR3015-101
OWINR3015-101
| 3.0 | 3.0 | 1.5 | 100.00 | 4043.00 | 0.23 | 0.21 |
| |
OWINR3012-101
OWINR3012-101
| 3.0 | 3.0 | 1.3 | 100.00 | 3718.00 | 0.21 | 0.25 |
| |
OWIHP2313M-101
OWIHP2313M-101
| 23.5 | 22.0 | 12.6 | 100.00 | 40.00 | 9.00 | 11.00 |
| |
OWIHP1770M-101
OWIHP1770M-101
| 17.5 | 17.2 | 7.0 | 100.00 | 130.00 | 5.00 | 3.70 |
| |
OWIHP1265M-101
OWIHP1265M-101
| 13.5 | 12.6 | 6.5 | 100.00 | 170.00 | 4.00 | 3.50 |
| |
OWIHP1260M-101
OWIHP1260M-101
| 13.5 | 12.6 | 5.8 | 100.00 | 200.00 | 3.50 | 3.00 |
| |
OWIHP1050M-101
OWIHP1050M-101
| 11.5 | 10.0 | 4.8 | 100.00 | 290.00 | 2.80 | 2.10 |
| |
OWIHP1040M-101
OWIHP1040M-101
| 11.0 | 10.0 | 3.8 | 100.00 | 340.00 | 2.30 | 2.00 |
| |
OWIHP1770A-101
OWIHP1770A-101
| 17.5 | 17.0 | 7.0 | 100.00 | 118.00 | 12.00 | 5.30 |
| |
OWIHP1260A-101
OWIHP1260A-101
| 13.5 | 12.6 | 5.7 | 100.00 | 200.00 | 8.00 | 4.00 |
| |
OWA132-10T
OWA132-10T
| 9.5 | 4.5 | 4.6 | 111.00 | 9.50 | - | 3.50 |
| |
OWIRH73-121
OWIRH73-121
| 7.5 | 7.5 | 3.5 | 120.00 | 890.00 | - | - |
| |
OWIRH74-121
OWIRH74-121
| 7.5 | 7.5 | 4.5 | 120.00 | 660.00 | 1.00 | - |
| |
OWIRH124-121
OWIRH124-121
| 12.5 | 12.5 | 4.5 | 120.00 | 380.00 | 1.00 | - |
| |
OWIRH125-121
OWIRH125-121
| 12.5 | 12.5 | 6.0 | 120.00 | 170.00 | 1.00 | - |
| |
OWIRH127-121
OWIRH127-121
| 12.5 | 12.5 | 8.0 | 120.00 | 250.00 | 2.00 | - |
| |
OWIRH129-121
OWIRH129-121
| 12.5 | 12.5 | 10.0 | 120.00 | 154.00 | 2.00 | - |
| |
OWIRH4D28-121
OWIRH4D28-121
| 4.7 | 4.7 | 3.0 | 120.00 | 1270.00 | - | - |
| |
OWIRH103R-121
OWIRH103R-121
| 10.3 | 10.5 | 3.1 | 120.00 | 754.00 | 1.00 | - |
| |
OWIRH104R-121
OWIRH104R-121
| 10.3 | 10.5 | 4.0 | 120.00 | 420.00 | 1.00 | - |
| |
OWIRH105R-121
OWIRH105R-121
| 10.3 | 10.5 | 5.1 | 120.00 | 303.00 | 1.00 | - |
| |
OWI54-121
OWI54-121
| 5.8 | 5.2 | 4.5 | 120.00 | 770.00 | - | - |
| |
OWI75-121
OWI75-121
| 7.8 | 7.0 | 5.0 | 120.00 | 470.00 | 1.00 | - |
| |
OWI105-121
OWI105-121
| 10.0 | 9.0 | 5.4 | 120.00 | 400.00 | 1.00 | - |
| |
OWCWI100505-R12
OWCWI100505-R12
| 1.2 | 0.7 | 0.6 | 120.00 | 2200.00 | - | - |
| |
OWCWI160808-R12
OWCWI160808-R12
| 1.8 | 1.1 | 1.0 | 120.00 | 730.00 | - | - |
| |
OWCWI201209-R12
OWCWI201209-R12
| 2.3 | 1.7 | 1.5 | 120.00 | 510.00 | - | - |
| |
OWCWI252018-R12
OWCWI252018-R12
| 2.9 | 2.8 | 2.1 | 120.00 | 630.00 | - | - |
| |
OWCWI322522-R12
OWCWI322522-R12
| 3.5 | 2.9 | 2.3 | 120.00 | 210.00 | - | - |
| |
OWA1812-R12
OWA1812-R12
| 4.7 | 3.5 | 3.5 | 120.00 | 11.50 | - | 2.40 |
| |
OWA1008-R12K
OWA1008-R12K
| 3.2 | 1.9 | 2.2 | 120.00 | 63.40 | - | 0.32 |
| |
OWINR8040-121
OWINR8040-121
| 8.0 | 8.0 | 4.2 | 120.00 | 434.00 | 1.05 | 0.95 |
| |
OWINR6045-121
OWINR6045-121
| 6.0 | 6.0 | 4.5 | 120.00 | 629.00 | 0.85 | 0.77 |
| |
OWINR5020-121
OWINR5020-121
| 5.0 | 5.0 | 2.0 | 120.00 | 1755.00 | 0.42 | 0.40 |
| |
OWINR4030-121
OWINR4030-121
| 4.0 | 4.0 | 3.0 | 120.00 | 1755.00 | 0.55 | 0.42 |
| |
OWIHP1260M-121
OWIHP1260M-121
| 13.5 | 12.6 | 5.8 | 120.00 | 235.00 | 3.20 | 2.00 |
| |
OWIHP1260A-121
OWIHP1260A-121
| 13.5 | 12.6 | 5.7 | 120.00 | 235.00 | 7.00 | 3.50 |
| |
OWA132-11T
OWA132-11T
| 9.5 | 4.5 | 4.6 | 130.00 | 10.80 | - | 3.00 |
| |
OWIRH73-151
OWIRH73-151
| 7.5 | 7.5 | 3.5 | 150.00 | 1270.00 | - | - |
| |
OWIRH74-151
OWIRH74-151
| 7.5 | 7.5 | 4.5 | 150.00 | 880.00 | - | - |
| |
OWIRH124-151
OWIRH124-151
| 12.5 | 12.5 | 4.5 | 150.00 | 530.00 | 1.00 | - |
| |
OWIRH125-151
OWIRH125-151
| 12.5 | 12.5 | 6.0 | 150.00 | 230.00 | 1.00 | - |
| |
OWIRH127-151
OWIRH127-151
| 12.5 | 12.5 | 8.0 | 150.00 | 280.00 | 1.00 | - |
| |
OWIRH129-151
OWIRH129-151
| 12.5 | 12.5 | 10.0 | 150.00 | 174.00 | 2.00 | - |
| |
OWIRH4D18-151
OWIRH4D18-151
| 4.7 | 4.7 | 2.0 | 150.00 | 2400.00 | - | - |
| |
OWIRH4D28-151
OWIRH4D28-151
| 4.7 | 4.7 | 3.0 | 150.00 | 1350.00 | - | - |
| |
OWIRH5D28-151
OWIRH5D28-151
| 5.7 | 5.7 | 3.0 | 150.00 | 1050.00 | - | - |
| |
OWIRH103R-151
OWIRH103R-151
| 10.3 | 10.5 | 3.1 | 150.00 | 871.00 | 1.00 | - |
| |
OWIRH104R-151
OWIRH104R-151
| 10.3 | 10.5 | 4.0 | 150.00 | 506.00 | 1.00 | - |
| |
OWIRH105R-151
OWIRH105R-151
| 10.3 | 10.5 | 5.1 | 150.00 | 370.00 | 1.00 | - |
| |
OWI32-151
OWI32-151
| 3.5 | 3.0 | 2.1 | 150.00 | 4200.00 | - | - |
| |
OWI43-151
OWI43-151
| 4.5 | 4.0 | 3.2 | 150.00 | 2000.00 | - | - |
| |
OWI54-151
OWI54-151
| 5.8 | 5.2 | 4.5 | 150.00 | 1200.00 | - | - |
| |
OWI75-151
OWI75-151
| 7.8 | 7.0 | 5.0 | 150.00 | 640.00 | 1.00 | - |
| |
OWI105-151
OWI105-151
| 10.0 | 9.0 | 5.4 | 150.00 | 470.00 | 1.00 | - |
| |
OWI0403F-151
OWI0403F-151
| 6.6 | 4.5 | 2.9 | 150.00 | 2000.00 | - | 0.25 |
| |
OWI0802F-151
OWI0802F-151
| 13.2 | 9.4 | 3.1 | 150.00 | 940.00 | 1.00 | 0.62 |
| |
OWI0804F-151
OWI0804F-151
| 13.2 | 9.4 | 5.2 | 150.00 | 400.00 | 1.00 | 1.00 |
| |
OWI0810F-151
OWI0810F-151
| 13.2 | 9.4 | 11.4 | 150.00 | 330.00 | 2.00 | 0.90 |
| |
OWI1206F-151
OWI1206F-151
| 18.5 | 15.2 | 7.1 | 150.00 | 270.00 | 3.00 | 1.50 |
| |
OWI1211F-151
OWI1211F-151
| 19.0 | 15.7 | 11.4 | 150.00 | 220.00 | 4.00 | 2.30 |
| |
OWCWI201209-R15
OWCWI201209-R15
| 2.3 | 1.7 | 1.5 | 150.00 | 560.00 | - | - |
| |
OWCWI252018-R15
OWCWI252018-R15
| 2.9 | 2.8 | 2.1 | 150.00 | 700.00 | - | - |
| |
OWCWI322522-R15
OWCWI322522-R15
| 3.5 | 2.9 | 2.3 | 150.00 | 250.00 | - | - |
| |
OWA1812-R15
OWA1812-R15
| 4.7 | 3.5 | 3.5 | 150.00 | 13.00 | - | 2.20 |
| |
OWINR8065-151
OWINR8065-151
| 8.0 | 8.0 | 6.8 | 150.00 | 575.00 | 1.80 | 1.20 |
| |
OWINR8050-151
OWINR8050-151
| 8.0 | 8.0 | 5.2 | 150.00 | 585.00 | 1.20 | 0.95 |
| |
OWINR8040-151
OWINR8040-151
| 8.0 | 8.0 | 4.2 | 150.00 | 533.00 | 1.10 | 0.85 |
| |
OWINR6045-151
OWINR6045-151
| 6.0 | 6.0 | 4.5 | 150.00 | 754.00 | 0.80 | 0.70 |
| |
OWINR5040-151
OWINR5040-151
| 5.0 | 5.0 | 4.0 | 150.00 | 975.00 | 0.65 | 0.60 |
| |
OWINR4030-151
OWINR4030-151
| 4.0 | 4.0 | 3.0 | 150.00 | 2340.00 | 0.50 | 0.30 |
| |
OWINR4018-151
OWINR4018-151
| 4.0 | 4.0 | 1.8 | 150.00 | 3250.00 | 0.31 | 0.22 |
| |
OWINR3015-151
OWINR3015-151
| 3.0 | 3.0 | 1.5 | 150.00 | 4940.00 | 0.18 | 0.19 |
| |
OWIHP1260M-151
OWIHP1260M-151
| 13.5 | 12.6 | 5.8 | 150.00 | 350.00 | 2.70 | 1.50 |
| |
OWIHP1260A-151
OWIHP1260A-151
| 13.5 | 12.6 | 5.7 | 150.00 | 350.00 | 6.00 | 3.00 |
| |
OWTC0709D-161
OWTC0709D-161
| 8.0 | 9.5 | 3.5 | 160.00 | 125.00 | - | - |
| |
OWA132-12T
OWA132-12T
| 9.5 | 4.5 | 4.6 | 169.00 | 12.00 | - | 3.00 |
| |
OWIRH73-181
OWIRH73-181
| 7.5 | 7.5 | 3.5 | 180.00 | 1450.00 | - | - |
| |
OWIRH74-181
OWIRH74-181
| 7.5 | 7.5 | 4.5 | 180.00 | 980.00 | - | - |
| |
OWIRH124-181
OWIRH124-181
| 12.5 | 12.5 | 4.5 | 180.00 | 620.00 | 1.00 | - |
| |
OWIRH125-181
OWIRH125-181
| 12.5 | 12.5 | 6.0 | 180.00 | 290.00 | 1.00 | - |
| |
OWIRH127-181
OWIRH127-181
| 12.5 | 12.5 | 8.0 | 180.00 | 350.00 | 1.00 | - |
| |
OWIRH129-181
OWIRH129-181
| 12.5 | 12.5 | 10.0 | 180.00 | 191.00 | 2.00 | - |
| |
OWIRH4D28-181
OWIRH4D28-181
| 4.7 | 4.7 | 3.0 | 180.00 | 1540.00 | - | - |
| |
OWIRH5D28-181
OWIRH5D28-181
| 5.7 | 5.7 | 3.0 | 180.00 | 1550.00 | - | - |
| |
OWIRH104R-181
OWIRH104R-181
| 10.3 | 10.5 | 4.0 | 180.00 | 680.00 | 1.00 | - |
| |
OWIRH105R-181
OWIRH105R-181
| 10.3 | 10.5 | 5.1 | 180.00 | 419.00 | 1.00 | - |
| |
OWI75-181
OWI75-181
| 7.8 | 7.0 | 5.0 | 180.00 | 710.00 | 1.00 | - |
| |
OWI105-181
OWI105-181
| 10.0 | 9.0 | 5.4 | 180.00 | 630.00 | 1.00 | - |
| |
OWCWI201209-R18
OWCWI201209-R18
| 2.3 | 1.7 | 1.5 | 180.00 | 640.00 | - | - |
| |
OWCWI252018-R18
OWCWI252018-R18
| 2.9 | 2.8 | 2.1 | 180.00 | 770.00 | - | - |
| |
OWCWI322522-R18
OWCWI322522-R18
| 3.5 | 2.9 | 2.3 | 180.00 | 300.00 | - | - |
| |
OWINR8040-181
OWINR8040-181
| 8.0 | 8.0 | 4.2 | 180.00 | 676.00 | 0.95 | 0.83 |
| |
OWINR5020-201
OWINR5020-201
| 5.0 | 5.0 | 2.0 | 200.00 | 2600.00 | 0.30 | 0.40 |
| |
OWA132-13T
OWA132-13T
| 9.5 | 4.5 | 4.6 | 206.00 | 10.50 | - | 3.00 |
| |
OWIRH73-221
OWIRH73-221
| 7.5 | 7.5 | 3.5 | 220.00 | 1650.00 | - | - |
| |
OWIRH74-221
OWIRH74-221
| 7.5 | 7.5 | 4.5 | 220.00 | 1170.00 | - | - |
| |
OWIRH124-221
OWIRH124-221
| 12.5 | 12.5 | 4.5 | 220.00 | 700.00 | 1.00 | - |
| |
OWIRH125-221
OWIRH125-221
| 12.5 | 12.5 | 6.0 | 220.00 | 400.00 | 1.00 | - |
| |
OWIRH127-221
OWIRH127-221
| 12.5 | 12.5 | 8.0 | 220.00 | 390.00 | 1.00 | - |
| |
OWIRH129-221
OWIRH129-221
| 12.5 | 12.5 | 10.0 | 220.00 | 246.00 | 2.00 | - |
| |
OWIRH4D28-221
OWIRH4D28-221
| 4.7 | 4.7 | 3.0 | 220.00 | 2000.00 | - | - |
| |
OWIRH104R-221
OWIRH104R-221
| 10.3 | 10.5 | 4.0 | 220.00 | 756.00 | 1.00 | - |
| |
OWIRH105R-221
OWIRH105R-221
| 10.3 | 10.5 | 5.1 | 220.00 | 500.00 | 1.00 | - |
| |
OWI3015-221
OWI3015-221
| 3.5 | 3.0 | 1.6 | 220.00 | 10000.00 | - | - |
| |
OWI32-221
OWI32-221
| 3.5 | 3.0 | 2.1 | 220.00 | 6000.00 | - | - |
| |
OWI43-221
OWI43-221
| 4.5 | 4.0 | 3.2 | 220.00 | 3400.00 | - | - |
| |
OWI54-221
OWI54-221
| 5.8 | 5.2 | 4.5 | 220.00 | 1570.00 | - | - |
| |
OWI75-221
OWI75-221
| 7.8 | 7.0 | 5.0 | 220.00 | 960.00 | - | - |
| |
OWI105-221
OWI105-221
| 10.0 | 9.0 | 5.4 | 220.00 | 730.00 | 1.00 | - |
| |
OWI0403F-221
OWI0403F-221
| 6.6 | 4.5 | 2.9 | 220.00 | 3110.00 | - | 0.20 |
| |
OWI0802F-221
OWI0802F-221
| 13.2 | 9.4 | 3.1 | 220.00 | 1600.00 | 1.00 | 0.48 |
| |
OWI0804F-221
OWI0804F-221
| 13.2 | 9.4 | 5.2 | 220.00 | 610.00 | 1.00 | 0.80 |
| |
OWI0810F-221
OWI0810F-221
| 13.2 | 9.4 | 11.4 | 220.00 | 440.00 | 2.00 | 0.70 |
| |
OWI1206F-221
OWI1206F-221
| 18.5 | 15.2 | 7.1 | 220.00 | 400.00 | 2.00 | 1.20 |
| |
OWI1211F-221
OWI1211F-221
| 19.0 | 15.7 | 11.4 | 220.00 | 310.00 | 3.00 | 1.80 |
| |
OWCWI160808-R22
OWCWI160808-R22
| 1.8 | 1.1 | 1.0 | 220.00 | 2100.00 | - | - |
| |
OWCWI201209-R22
OWCWI201209-R22
| 2.3 | 1.7 | 1.5 | 220.00 | 1050.00 | - | - |
| |
OWCWI252018-R22
OWCWI252018-R22
| 2.9 | 2.8 | 2.1 | 220.00 | 840.00 | - | - |
| |
OWCWI322522-R22
OWCWI322522-R22
| 3.5 | 2.9 | 2.3 | 220.00 | 320.00 | - | - |
| |
OWINR8065-221
OWINR8065-221
| 8.0 | 8.0 | 6.8 | 220.00 | 988.00 | 1.40 | 0.90 |
| |
OWINR8040-221
OWINR8040-221
| 8.0 | 8.0 | 4.2 | 220.00 | 779.00 | 0.85 | 0.80 |
| |
OWINR6045-221
OWINR6045-221
| 6.0 | 6.0 | 4.5 | 220.00 | 1084.00 | 0.70 | 0.59 |
| |
OWINR4030-221
OWINR4030-221
| 4.0 | 4.0 | 3.0 | 220.00 | 3250.00 | 0.40 | 0.35 |
| |
OWINR4026-221
OWINR4026-221
| 4.0 | 4.0 | 2.8 | 220.00 | 3000.00 | 0.35 | 0.30 |
| |
OWINR4018-221
OWINR4018-221
| 4.0 | 4.0 | 1.8 | 220.00 | 5200.00 | 0.27 | 0.17 |
| |
OWA132-14T
OWA132-14T
| 9.5 | 4.5 | 4.6 | 222.00 | 14.00 | - | 3.00 |
| |
OWA132-15T
OWA132-15T
| 9.5 | 4.5 | 4.6 | 246.00 | 17.00 | - | 3.00 |
| |
OWIRH73-271
OWIRH73-271
| 7.5 | 7.5 | 3.5 | 270.00 | 2310.00 | - | - |
| |
OWIRH74-271
OWIRH74-271
| 7.5 | 7.5 | 4.5 | 270.00 | 1640.00 | - | - |
| |
OWIRH124-271
OWIRH124-271
| 12.5 | 12.5 | 4.5 | 270.00 | 876.00 | 1.00 | - |
| |
OWIRH125-271
OWIRH125-271
| 12.5 | 12.5 | 6.0 | 270.00 | 460.00 | 1.00 | - |
| |
OWIRH127-271
OWIRH127-271
| 12.5 | 12.5 | 8.0 | 270.00 | 560.00 | 1.00 | - |
| |
OWIRH129-271
OWIRH129-271
| 12.5 | 12.5 | 10.0 | 270.00 | 400.00 | 2.00 | - |
| |
OWIRH105R-271
OWIRH105R-271
| 10.3 | 10.5 | 5.1 | 270.00 | 672.00 | 1.00 | - |
| |
OWCWI160808-R27
OWCWI160808-R27
| 1.8 | 1.1 | 1.0 | 270.00 | 2300.00 | - | - |
| |
OWCWI201209-R27
OWCWI201209-R27
| 2.3 | 1.7 | 1.5 | 270.00 | 1100.00 | - | - |
| |
OWCWI252018-R27
OWCWI252018-R27
| 2.9 | 2.8 | 2.1 | 270.00 | 910.00 | - | - |
| |
OWCWI322522-R27
OWCWI322522-R27
| 3.5 | 2.9 | 2.3 | 270.00 | 340.00 | - | - |
| |
OWA132-16T
OWA132-16T
| 9.5 | 4.5 | 4.6 | 307.00 | 22.00 | - | 3.00 |
| |
OWIRH73-331
OWIRH73-331
| 7.5 | 7.5 | 3.5 | 330.00 | 2620.00 | - | - |
| |
OWIRH74-331
OWIRH74-331
| 7.5 | 7.5 | 4.5 | 330.00 | 1860.00 | - | - |
| |
OWIRH124-331
OWIRH124-331
| 12.5 | 12.5 | 4.5 | 330.00 | 990.00 | 1.00 | - |
| |
OWIRH125-331
OWIRH125-331
| 12.5 | 12.5 | 6.0 | 330.00 | 510.00 | 1.00 | - |
| |
OWIRH127-331
OWIRH127-331
| 12.5 | 12.5 | 8.0 | 330.00 | 640.00 | 1.00 | - |
| |
OWIRH129-331
OWIRH129-331
| 12.5 | 12.5 | 10.0 | 330.00 | 386.00 | 1.00 | - |
| |
OWIRH4D28-331
OWIRH4D28-331
| 4.7 | 4.7 | 3.0 | 330.00 | 3400.00 | - | - |
| |
OWIRH5D28-331
OWIRH5D28-331
| 5.7 | 5.7 | 3.0 | 330.00 | 1958.00 | - | - |
| |
OWIRH6D38-331
OWIRH6D38-331
| 6.7 | 6.7 | 4.0 | 330.00 | 1550.00 | - | - |
| |
OWIRH104R-331
OWIRH104R-331
| 10.3 | 10.5 | 4.0 | 330.00 | 1090.00 | 1.00 | - |
| |
OWIRH105R-331
OWIRH105R-331
| 10.3 | 10.5 | 5.1 | 330.00 | 812.00 | 1.00 | - |
| |
OWI3015-331
OWI3015-331
| 3.5 | 3.0 | 1.6 | 330.00 | 16000.00 | - | - |
| |
OWI32-331
OWI32-331
| 3.5 | 3.0 | 2.1 | 330.00 | 9500.00 | - | - |
| |
OWI43-331
OWI43-331
| 4.5 | 4.0 | 3.2 | 330.00 | 5300.00 | - | - |
| |
OWI54-331
OWI54-331
| 5.8 | 5.2 | 4.5 | 330.00 | 1800.00 | - | - |
| |
OWI75-331
OWI75-331
| 7.8 | 7.0 | 5.0 | 330.00 | 1260.00 | - | - |
| |
OWI105-331
OWI105-331
| 10.0 | 9.0 | 5.4 | 330.00 | 1150.00 | 1.00 | - |
| |
OWI0403F-331
OWI0403F-331
| 6.6 | 4.5 | 2.9 | 330.00 | 3800.00 | - | 0.16 |
| |
OWI0802F-331
OWI0802F-331
| 13.2 | 9.4 | 3.1 | 330.00 | 2150.00 | 1.00 | 0.38 |
| |
OWI0804F-331
OWI0804F-331
| 13.2 | 9.4 | 5.2 | 330.00 | 1020.00 | 1.00 | 0.60 |
| |
OWI0810F-331
OWI0810F-331
| 13.2 | 9.4 | 11.4 | 330.00 | 700.00 | 1.00 | 0.60 |
| |
OWI1206F-331
OWI1206F-331
| 18.5 | 15.2 | 7.1 | 330.00 | 580.00 | 2.00 | 1.00 |
| |
OWI1211F-331
OWI1211F-331
| 19.0 | 15.7 | 11.4 | 330.00 | 450.00 | 3.00 | 1.50 |
| |
OWCWI160808-R33
OWCWI160808-R33
| 1.8 | 1.1 | 1.0 | 330.00 | 3890.00 | - | - |
| |
OWCWI201209-R33
OWCWI201209-R33
| 2.3 | 1.7 | 1.5 | 330.00 | 1400.00 | - | - |
| |
OWCWI252018-R33
OWCWI252018-R33
| 2.9 | 2.8 | 2.1 | 330.00 | 1050.00 | - | - |
| |
OWCWI322522-R33
OWCWI322522-R33
| 3.5 | 2.9 | 2.3 | 330.00 | 380.00 | - | - |
| |
OWINR8065-331
OWINR8065-331
| 8.0 | 8.0 | 6.8 | 330.00 | 1320.00 | 1.10 | 0.70 |
| |
OWINR8040-331
OWINR8040-331
| 8.0 | 8.0 | 4.2 | 330.00 | 1156.00 | 0.68 | 0.64 |
| |
OWINR6045-331
OWINR6045-331
| 6.0 | 6.0 | 4.5 | 330.00 | 1651.00 | 0.57 | 0.57 |
| |
OWINR6020-331
OWINR6020-331
| 6.0 | 6.0 | 2.0 | 330.00 | 3419.00 | 0.27 | 0.33 |
| |
OWINR4030-331
OWINR4030-331
| 4.0 | 4.0 | 3.0 | 330.00 | 5200.00 | 0.30 | 0.25 |
| |
OWA132-17T
OWA132-17T
| 9.5 | 4.5 | 4.6 | 380.00 | 25.50 | - | 2.50 |
| |
OWIRH73-391
OWIRH73-391
| 7.5 | 7.5 | 3.5 | 390.00 | 2940.00 | - | - |
| |
OWIRH74-391
OWIRH74-391
| 7.5 | 7.5 | 4.5 | 390.00 | 2850.00 | - | - |
| |
OWIRH125-391
OWIRH125-391
| 12.5 | 12.5 | 6.0 | 390.00 | 690.00 | 1.00 | - |
| |
OWIRH127-391
OWIRH127-391
| 12.5 | 12.5 | 8.0 | 390.00 | 700.00 | 1.00 | - |
| |
OWIRH129-391
OWIRH129-391
| 12.5 | 12.5 | 10.0 | 390.00 | 500.00 | 1.00 | - |
| |
OWIRH4D28-391
OWIRH4D28-391
| 4.7 | 4.7 | 3.0 | 390.00 | 3560.00 | - | - |
| |
OWIRH105R-391
OWIRH105R-391
| 10.3 | 10.5 | 5.1 | 390.00 | 953.00 | 1.00 | - |
| |
OWI32-391
OWI32-391
| 3.5 | 3.0 | 2.1 | 390.00 | 10500.00 | - | - |
| |
OWI105-391
OWI105-391
| 10.0 | 9.0 | 5.4 | 390.00 | 1300.00 | - | - |
| |
OWCWI160808-R39
OWCWI160808-R39
| 1.8 | 1.1 | 1.0 | 390.00 | 4350.00 | - | - |
| |
OWCWI201209-R39
OWCWI201209-R39
| 2.3 | 1.7 | 1.5 | 390.00 | 1500.00 | - | - |
| |
OWCWI252018-R39
OWCWI252018-R39
| 2.9 | 2.8 | 2.1 | 390.00 | 1120.00 | - | - |
| |
OWCWI322522-R39
OWCWI322522-R39
| 3.5 | 2.9 | 2.3 | 390.00 | 580.00 | - | - |
| |
OWINR8065-391
OWINR8065-391
| 8.0 | 8.0 | 6.8 | 390.00 | 1480.00 | 1.08 | 0.68 |
| |
OWINR6028-401
OWINR6028-401
| 6.0 | 6.0 | 3.0 | 400.00 | 2808.00 | 0.30 | 0.40 |
| |
OWA132-18T
OWA132-18T
| 9.5 | 4.5 | 4.6 | 422.00 | 39.00 | - | 2.50 |
| |
OWINR8065-431
OWINR8065-431
| 8.0 | 8.0 | 6.8 | 430.00 | 1580.00 | 0.95 | 0.61 |
| |
OWIRH73-471
OWIRH73-471
| 7.5 | 7.5 | 3.5 | 470.00 | 4180.00 | - | - |
| |
OWIRH74-471
OWIRH74-471
| 7.5 | 7.5 | 4.5 | 470.00 | 3010.00 | - | - |
| |
OWIRH125-471
OWIRH125-471
| 12.5 | 12.5 | 6.0 | 470.00 | 770.00 | 1.00 | - |
| |
OWIRH127-471
OWIRH127-471
| 12.5 | 12.5 | 8.0 | 470.00 | 980.00 | 1.00 | - |
| |
OWIRH129-471
OWIRH129-471
| 12.5 | 12.5 | 10.0 | 470.00 | 550.00 | 1.00 | - |
| |
OWIRH5D28-471
OWIRH5D28-471
| 5.7 | 5.7 | 3.0 | 470.00 | 2700.00 | - | - |
| |
OWIRH6D38-471
OWIRH6D38-471
| 6.7 | 6.7 | 4.0 | 470.00 | 2200.00 | - | - |
| |
OWIRH104R-471
OWIRH104R-471
| 10.3 | 10.5 | 4.0 | 470.00 | 1350.00 | 1.00 | - |
| |
OWIRH105R-471
OWIRH105R-471
| 10.3 | 10.5 | 5.1 | 470.00 | 1289.00 | 1.00 | - |
| |
OWI32-471
OWI32-471
| 3.5 | 3.0 | 2.1 | 470.00 | 11500.00 | - | - |
| |
OWI43-471
OWI43-471
| 4.5 | 4.0 | 3.2 | 470.00 | 6800.00 | - | - |
| |
OWI54-471
OWI54-471
| 5.8 | 5.2 | 4.5 | 470.00 | 3000.00 | - | - |
| |
OWI75-471
OWI75-471
| 7.8 | 7.0 | 5.0 | 470.00 | 1890.00 | - | - |
| |
OWI105-471
OWI105-471
| 10.0 | 9.0 | 5.4 | 470.00 | 1480.00 | - | - |
| |
OWI0403F-471
OWI0403F-471
| 6.6 | 4.5 | 2.9 | 470.00 | 5060.00 | - | 0.15 |
| |
OWI0802F-471
OWI0802F-471
| 13.2 | 9.4 | 3.1 | 470.00 | 3300.00 | - | 0.28 |
| |
OWI0804F-471
OWI0804F-471
| 13.2 | 9.4 | 5.2 | 470.00 | 1270.00 | 1.00 | 0.50 |
| |
OWI0810F-471
OWI0810F-471
| 13.2 | 9.4 | 11.4 | 470.00 | 950.00 | 1.00 | 0.30 |
| |
OWI1206F-471
OWI1206F-471
| 18.5 | 15.2 | 7.1 | 470.00 | 870.00 | 1.00 | 0.82 |
| |
OWI1211F-471
OWI1211F-471
| 19.0 | 15.7 | 11.4 | 470.00 | 600.00 | 2.00 | 1.20 |
| |
OWCWI201209-R47
OWCWI201209-R47
| 2.3 | 1.7 | 1.5 | 470.00 | 2000.00 | - | - |
| |
OWCWI252018-R47
OWCWI252018-R47
| 2.9 | 2.8 | 2.1 | 470.00 | 1190.00 | - | - |
| |
OWCWI322522-R47
OWCWI322522-R47
| 3.5 | 2.9 | 2.3 | 470.00 | 800.00 | - | - |
| |
OWINR8065-471
OWINR8065-471
| 8.0 | 8.0 | 6.8 | 470.00 | 1690.00 | 0.90 | 0.55 |
| |
OWINR8040-471
OWINR8040-471
| 8.0 | 8.0 | 4.2 | 470.00 | 1625.00 | 0.60 | 0.50 |
| |
OWINR6045-471
OWINR6045-471
| 6.0 | 6.0 | 4.5 | 470.00 | 2340.00 | 0.50 | 0.42 |
| |
OWINR6028-471
OWINR6028-471
| 6.0 | 6.0 | 3.0 | 470.00 | 2990.00 | 0.28 | 0.38 |
| |
OWINR4030-471
OWINR4030-471
| 4.0 | 4.0 | 3.0 | 470.00 | 9360.00 | 0.30 | 0.20 |
| |
OWA132-19T
OWA132-19T
| 9.5 | 4.5 | 4.6 | 491.00 | 40.00 | - | 2.00 |
| |
OWINR4030-501
OWINR4030-501
| 4.0 | 4.0 | 3.0 | 500.00 | 9027.00 | 0.28 | 0.15 |
| |
OWA132-20T
OWA132-20T
| 9.5 | 4.5 | 4.6 | 538.00 | 42.00 | - | 2.00 |
| |
OWIRH73-561
OWIRH73-561
| 7.5 | 7.5 | 3.5 | 560.00 | 4670.00 | - | - |
| |
OWIRH74-561
OWIRH74-561
| 7.5 | 7.5 | 4.5 | 560.00 | 3620.00 | - | - |
| |
OWIRH125-561
OWIRH125-561
| 12.5 | 12.5 | 6.0 | 560.00 | 860.00 | 1.00 | - |
| |
OWIRH127-561
OWIRH127-561
| 12.5 | 12.5 | 8.0 | 560.00 | 1070.00 | 1.00 | - |
| |
OWIRH129-561
OWIRH129-561
| 12.5 | 12.5 | 10.0 | 560.00 | 650.00 | 1.00 | - |
| |
OWIRH6D38-561
OWIRH6D38-561
| 6.7 | 6.7 | 4.0 | 560.00 | 3200.00 | - | - |
| |
OWIRH105R-561
OWIRH105R-561
| 10.3 | 10.5 | 5.1 | 560.00 | 1430.00 | 1.00 | - |
| |
OWI54-561
OWI54-561
| 5.8 | 5.2 | 4.5 | 560.00 | 3500.00 | - | - |
| |
OWI75-561
OWI75-561
| 7.8 | 7.0 | 5.0 | 560.00 | 2000.00 | - | - |
| |
OWI105-561
OWI105-561
| 10.0 | 9.0 | 5.4 | 560.00 | 1900.00 | - | - |
| |
OWCWI201209-R56
OWCWI201209-R56
| 2.3 | 1.7 | 1.5 | 560.00 | 1900.00 | - | - |
| |
OWCWI252018-R56
OWCWI252018-R56
| 2.9 | 2.8 | 2.1 | 560.00 | 1330.00 | - | - |
| |
OWCWI322522-R56
OWCWI322522-R56
| 3.5 | 2.9 | 2.3 | 560.00 | 1100.00 | - | - |
| |
OWIRH73-681
OWIRH73-681
| 7.5 | 7.5 | 3.5 | 680.00 | 5730.00 | - | - |
| |
OWIRH74-681
OWIRH74-681
| 7.5 | 7.5 | 4.5 | 680.00 | 4630.00 | - | - |
| |
OWIRH125-681
OWIRH125-681
| 12.5 | 12.5 | 6.0 | 680.00 | 1200.00 | - | - |
| |
OWIRH127-681
OWIRH127-681
| 12.5 | 12.5 | 8.0 | 680.00 | 1460.00 | 1.00 | - |
| |
OWIRH129-681
OWIRH129-681
| 12.5 | 12.5 | 10.0 | 680.00 | 730.00 | 1.00 | - |
| |
OWIRH4D28-681
OWIRH4D28-681
| 4.7 | 4.7 | 3.0 | 680.00 | 5200.00 | - | - |
| |
OWIRH5D28-681
OWIRH5D28-681
| 5.7 | 5.7 | 3.0 | 680.00 | 4150.00 | - | - |
| |
OWIRH104R-681
OWIRH104R-681
| 10.3 | 10.5 | 4.0 | 680.00 | 2400.00 | - | - |
| |
OWIRH105R-681
OWIRH105R-681
| 10.3 | 10.5 | 5.1 | 680.00 | 1599.00 | 1.00 | - |
| |
OWI32-681
OWI32-681
| 3.5 | 3.0 | 2.1 | 680.00 | 20500.00 | - | - |
| |
OWI43-681
OWI43-681
| 4.5 | 4.0 | 3.2 | 680.00 | 10000.00 | - | - |
| |
OWI54-681
OWI54-681
| 5.8 | 5.2 | 4.5 | 680.00 | 5100.00 | - | - |
| |
OWI75-681
OWI75-681
| 7.8 | 7.0 | 5.0 | 680.00 | 2560.00 | - | - |
| |
OWI105-681
OWI105-681
| 10.0 | 9.0 | 5.4 | 680.00 | 2250.00 | - | - |
| |
OWI0403F-681
OWI0403F-681
| 6.6 | 4.5 | 2.9 | 680.00 | 9200.00 | - | 0.12 |
| |
OWI0802F-681
OWI0802F-681
| 13.2 | 9.4 | 3.1 | 680.00 | 4400.00 | - | 0.24 |
| |
OWI0804F-681
OWI0804F-681
| 13.2 | 9.4 | 5.2 | 680.00 | 2020.00 | - | 0.40 |
| |
OWI0810F-681
OWI0810F-681
| 13.2 | 9.4 | 11.4 | 680.00 | 1700.00 | 1.00 | 0.20 |
| |
OWI1206F-681
OWI1206F-681
| 18.5 | 15.2 | 7.1 | 680.00 | 1400.00 | 1.00 | 0.72 |
| |
OWI1211F-681
OWI1211F-681
| 19.0 | 15.7 | 11.4 | 680.00 | 890.00 | 2.00 | 1.00 |
| |
OWCWI201209-R68
OWCWI201209-R68
| 2.3 | 1.7 | 1.5 | 680.00 | 2100.00 | - | - |
| |
OWCWI252018-R68
OWCWI252018-R68
| 2.9 | 2.8 | 2.1 | 680.00 | 1470.00 | - | - |
| |
OWCWI322522-R68
OWCWI322522-R68
| 3.5 | 2.9 | 2.3 | 680.00 | 1200.00 | - | - |
| |
OWINR8040-681
OWINR8040-681
| 8.0 | 8.0 | 4.2 | 680.00 | 2652.00 | 0.50 | 0.45 |
| |
OWINR6045-681
OWINR6045-681
| 6.0 | 6.0 | 4.5 | 680.00 | 3250.00 | 0.42 | 0.33 |
| |
OWINR6028-681
OWINR6028-681
| 6.0 | 6.0 | 3.0 | 680.00 | 4500.00 | 0.25 | 0.30 |
| |
OWINR4030-681
OWINR4030-681
| 4.0 | 4.0 | 3.0 | 680.00 | 9854.00 | 0.19 | 0.14 |
| |
OWINR4026-681
OWINR4026-681
| 4.0 | 4.0 | 2.8 | 680.00 | 13500.00 | 0.20 | 0.20 |
| |
OWCWI322522-R75
OWCWI322522-R75
| 3.5 | 2.9 | 2.3 | 750.00 | 1700.00 | - | - |
| |
OWIRH73-821
OWIRH73-821
| 7.5 | 7.5 | 3.5 | 820.00 | 6540.00 | - | - |
| |
OWIRH74-821
OWIRH74-821
| 7.5 | 7.5 | 4.5 | 820.00 | 5200.00 | - | - |
| |
OWIRH125-821
OWIRH125-821
| 12.5 | 12.5 | 6.0 | 820.00 | 1340.00 | - | - |
| |
OWIRH127-821
OWIRH127-821
| 12.5 | 12.5 | 8.0 | 820.00 | 1640.00 | 1.00 | - |
| |
OWIRH129-821
OWIRH129-821
| 12.5 | 12.5 | 10.0 | 820.00 | 824.00 | 1.00 | - |
| |
OWIRH104R-821
OWIRH104R-821
| 10.3 | 10.5 | 4.0 | 820.00 | 3800.00 | - | - |
| |
OWIRH105R-821
OWIRH105R-821
| 10.3 | 10.5 | 5.1 | 820.00 | 1768.00 | 1.00 | - |
| |
OWI54-821
OWI54-821
| 5.8 | 5.2 | 4.5 | 820.00 | 5300.00 | - | - |
| |
OWI75-821
OWI75-821
| 7.8 | 7.0 | 5.0 | 820.00 | 3250.00 | - | - |
| |
OWI105-821
OWI105-821
| 10.0 | 9.0 | 5.4 | 820.00 | 2550.00 | - | - |
| |
OWI0802F-821
OWI0802F-821
| 13.2 | 9.4 | 3.1 | 820.00 | 5800.00 | - | 0.20 |
| |
OWI1206F-821
OWI1206F-821
| 18.5 | 15.2 | 7.1 | 820.00 | 1700.00 | 1.00 | 0.68 |
| |
OWCWI201209-R82
OWCWI201209-R82
| 2.3 | 1.7 | 1.5 | 820.00 | 2140.00 | - | - |
| |
OWCWI252018-R82
OWCWI252018-R82
| 2.9 | 2.8 | 2.1 | 820.00 | 1610.00 | - | - |
| |
OWCWI322522-R82
OWCWI322522-R82
| 3.5 | 2.9 | 2.3 | 820.00 | 1820.00 | - | - |
| |
OWINR8065-821
OWINR8065-821
| 8.0 | 8.0 | 6.8 | 820.00 | 2000.00 | 0.65 | 0.50 |
| |
OWCWI201209-R91
OWCWI201209-R91
| 2.3 | 1.7 | 1.5 | 910.00 | 2280.00 | - | - |
| |
OWIRH73-102
OWIRH73-102
| 7.5 | 7.5 | 3.5 | 1000.00 | 9440.00 | - | - |
| |
OWIRH74-102
OWIRH74-102
| 7.5 | 7.5 | 4.5 | 1000.00 | 6000.00 | - | - |
| |
OWIRH125-102
OWIRH125-102
| 12.5 | 12.5 | 6.0 | 1000.00 | 1530.00 | - | - |
| |
OWIRH127-102
OWIRH127-102
| 12.5 | 12.5 | 8.0 | 1000.00 | 1820.00 | 1.00 | - |
| |
OWIRH129-102
OWIRH129-102
| 12.5 | 12.5 | 10.0 | 1000.00 | 1220.00 | 1.00 | - |
| |
OWIRH104R-102
OWIRH104R-102
| 10.3 | 10.5 | 4.0 | 1000.00 | 4420.00 | - | - |
| |
OWIRH105R-102
OWIRH105R-102
| 10.3 | 10.5 | 5.1 | 1000.00 | 1989.00 | - | - |
| |
OWI43-102
OWI43-102
| 4.5 | 4.0 | 3.2 | 1000.00 | 15600.00 | - | - |
| |
OWI54-102
OWI54-102
| 5.8 | 5.2 | 4.5 | 1000.00 | 7000.00 | - | - |
| |
OWI75-102
OWI75-102
| 7.8 | 7.0 | 5.0 | 1000.00 | 3300.00 | - | - |
| |
OWI0403F-102
OWI0403F-102
| 6.6 | 4.5 | 2.9 | 1000.00 | 13800.00 | - | 0.07 |
| |
OWI0802F-102
OWI0802F-102
| 13.2 | 9.4 | 3.1 | 1000.00 | 8400.00 | - | 0.18 |
| |
OWI0804F-102
OWI0804F-102
| 13.2 | 9.4 | 5.2 | 1000.00 | 3000.00 | - | 0.30 |
| |
OWI0810F-102
OWI0810F-102
| 13.2 | 9.4 | 11.4 | 1000.00 | 2000.00 | 1.00 | 0.10 |
| |
OWI1206F-102
OWI1206F-102
| 18.5 | 15.2 | 7.1 | 1000.00 | 2100.00 | 1.00 | 0.56 |
| |
OWI1211F-102
OWI1211F-102
| 19.0 | 15.7 | 11.4 | 1000.00 | 1280.00 | 2.00 | 0.88 |
| |
OWCWI201209-1R0
OWCWI201209-1R0
| 2.3 | 1.7 | 1.5 | 1000.00 | 2400.00 | - | - |
| |
OWCWI252018-1R0
OWCWI252018-1R0
| 2.9 | 2.8 | 2.1 | 1000.00 | 1750.00 | - | - |
| |
OWCWI322522-1R0
OWCWI322522-1R0
| 3.5 | 2.9 | 2.3 | 1000.00 | 1850.00 | - | - |
| |
OWINR8065-102
OWINR8065-102
| 8.0 | 8.0 | 6.8 | 1000.00 | 2820.00 | 0.60 | 0.40 |
| |
OWINR8050-102
OWINR8050-102
| 8.0 | 8.0 | 5.2 | 1000.00 | 5000.00 | 0.42 | 0.42 |
| |
OWINR8040-102
OWINR8040-102
| 8.0 | 8.0 | 4.2 | 1000.00 | 3640.00 | 0.40 | 0.35 |
| |
OWINR6045-102
OWINR6045-102
| 6.0 | 6.0 | 4.5 | 1000.00 | 5850.00 | 0.30 | 0.30 |
| |
OWINR6028-102
OWINR6028-102
| 6.0 | 6.0 | 3.0 | 1000.00 | 7540.00 | 0.18 | 0.23 |
| |
OWINR5040-102
OWINR5040-102
| 5.0 | 5.0 | 4.0 | 1000.00 | 7800.00 | 0.21 | 0.20 |
| |
OWIRH129-122
OWIRH129-122
| 12.5 | 12.5 | 10.0 | 1200.00 | 1330.00 | 1.00 | - |
| |
OWI0804F-122
OWI0804F-122
| 13.2 | 9.4 | 5.2 | 1200.00 | 3500.00 | - | 0.28 |
| |
OWCWI201209-1R2
OWCWI201209-1R2
| 2.3 | 1.7 | 1.5 | 1200.00 | 2550.00 | - | - |
| |
OWCWI252018-1R2
OWCWI252018-1R2
| 2.9 | 2.8 | 2.1 | 1200.00 | 2000.00 | - | - |
| |
OWCWI322522-1R2
OWCWI322522-1R2
| 3.5 | 2.9 | 2.3 | 1200.00 | 1870.00 | - | - |
| |
OWINR8050-122
OWINR8050-122
| 8.0 | 8.0 | 5.2 | 1200.00 | 5800.00 | 0.40 | 0.40 |
| |
OWIRH129-152
OWIRH129-152
| 12.5 | 12.5 | 10.0 | 1500.00 | 1990.00 | 1.00 | - |
| |
OWI0804F-152
OWI0804F-152
| 13.2 | 9.4 | 5.2 | 1500.00 | 5000.00 | - | 0.25 |
| |
OWCWI201209-1R5
OWCWI201209-1R5
| 2.3 | 1.7 | 1.5 | 1500.00 | 2800.00 | - | - |
| |
OWCWI252018-1R5
OWCWI252018-1R5
| 2.9 | 2.8 | 2.1 | 1500.00 | 2300.00 | - | - |
| |
OWCWI322522-1R5
OWCWI322522-1R5
| 3.5 | 2.9 | 2.3 | 1500.00 | 1950.00 | - | - |
| |
OWINR8065-152
OWINR8065-152
| 8.0 | 8.0 | 6.8 | 1500.00 | 4380.00 | 0.54 | 0.36 |
| |
OWINR8050-152
OWINR8050-152
| 8.0 | 8.0 | 5.2 | 1500.00 | 6500.00 | 0.35 | 0.35 |
| |
OWINR8040-152
OWINR8040-152
| 8.0 | 8.0 | 4.2 | 1500.00 | 6500.00 | 0.32 | 0.26 |
| |
OWINR6045-152
OWINR6045-152
| 6.0 | 6.0 | 4.5 | 1500.00 | 8450.00 | 0.24 | 0.21 |
| |
OWIRH129-182
OWIRH129-182
| 12.5 | 12.5 | 10.0 | 1800.00 | 2180.00 | - | - |
| |
OWI1206F-182
OWI1206F-182
| 18.5 | 15.2 | 7.1 | 1800.00 | 3400.00 | 1.00 | 0.48 |
| |
OWCWI201209-1R8
OWCWI201209-1R8
| 2.3 | 1.7 | 1.5 | 1800.00 | 3800.00 | - | - |
| |
OWCWI252018-1R8
OWCWI252018-1R8
| 2.9 | 2.8 | 2.1 | 1800.00 | 2600.00 | - | - |
| |
OWCWI322522-1R8
OWCWI322522-1R8
| 3.5 | 2.9 | 2.3 | 1800.00 | 2250.00 | - | - |
| |
OWIRH129-222
OWIRH129-222
| 12.5 | 12.5 | 10.0 | 2200.00 | 2580.00 | - | - |
| |
OWI0804F-222
OWI0804F-222
| 13.2 | 9.4 | 5.2 | 2200.00 | 8500.00 | - | 0.20 |
| |
OWI0810F-222
OWI0810F-222
| 13.2 | 9.4 | 11.4 | 2200.00 | 5300.00 | - | 0.09 |
| |
OWCWI201209-2R2
OWCWI201209-2R2
| 2.3 | 1.7 | 1.5 | 2200.00 | 4200.00 | - | - |
| |
OWCWI252018-2R2
OWCWI252018-2R2
| 2.9 | 2.8 | 2.1 | 2200.00 | 2800.00 | - | - |
| |
OWCWI322522-2R2
OWCWI322522-2R2
| 3.5 | 2.9 | 2.3 | 2200.00 | 2410.00 | - | - |
| |
OWI0810F-272
OWI0810F-272
| 13.2 | 9.4 | 11.4 | 2700.00 | 5500.00 | - | 0.08 |
| |
OWCWI252018-2R7
OWCWI252018-2R7
| 2.9 | 2.8 | 2.1 | 2700.00 | 3200.00 | - | - |
| |
OWCWI322522-2R7
OWCWI322522-2R7
| 3.5 | 2.9 | 2.3 | 2700.00 | 2850.00 | - | - |
| |
OWINR8065-302
OWINR8065-302
| 8.0 | 8.0 | 6.8 | 3000.00 | 10800.00 | 0.30 | 0.24 |
| |
OWIRH127-332
OWIRH127-332
| 12.5 | 12.5 | 8.0 | 3300.00 | 7800.00 | - | - |
| |
OWIRH129-332
OWIRH129-332
| 12.5 | 12.5 | 10.0 | 3300.00 | 4600.00 | - | - |
| |
OWI0804F-332
OWI0804F-332
| 13.2 | 9.4 | 5.2 | 3300.00 | 8970.00 | - | 0.17 |
| |
OWI0810F-332
OWI0810F-332
| 13.2 | 9.4 | 11.4 | 3300.00 | 6800.00 | - | 0.07 |
| |
OWCWI252018-3R3
OWCWI252018-3R3
| 2.9 | 2.8 | 2.1 | 3300.00 | 3400.00 | - | - |
| |
OWCWI322522-3R3
OWCWI322522-3R3
| 3.5 | 2.9 | 2.3 | 3300.00 | 3120.00 | - | - |
| |
OWCWI252018-3R9
OWCWI252018-3R9
| 2.9 | 2.8 | 2.1 | 3900.00 | 3600.00 | - | - |
| |
OWCWI322522-3R9
OWCWI322522-3R9
| 3.5 | 2.9 | 2.3 | 3900.00 | 3600.00 | - | - |
| |
OWI0804F-472
OWI0804F-472
| 13.2 | 9.4 | 5.2 | 4700.00 | 14500.00 | - | 0.12 |
| |
OWCWI252018-4R7
OWCWI252018-4R7
| 2.9 | 2.8 | 2.1 | 4700.00 | 4000.00 | - | - |
| |
OWCWI322522-4R7
OWCWI322522-4R7
| 3.5 | 2.9 | 2.3 | 4700.00 | 4000.00 | - | - |
| |
OWINR8065-472
OWINR8065-472
| 8.0 | 8.0 | 6.8 | 4700.00 | 14580.00 | 0.25 | 0.22 |
| |
OWCWI252018-5R6
OWCWI252018-5R6
| 2.9 | 2.8 | 2.1 | 5600.00 | 7600.00 | - | - |
| |
OWCWI322522-5R6
OWCWI322522-5R6
| 3.5 | 2.9 | 2.3 | 5600.00 | 5000.00 | - | - |
| |
OWCWI252018-6R8
OWCWI252018-6R8
| 2.9 | 2.8 | 2.1 | 6800.00 | 8200.00 | - | - |
| |
OWCWI322522-6R8
OWCWI322522-6R8
| 3.5 | 2.9 | 2.3 | 6800.00 | 8000.00 | - | - |
| |
OWINR8065-682
OWINR8065-682
| 8.0 | 8.0 | 6.8 | 6800.00 | 22440.00 | 0.24 | 0.20 |
| |
OWI0804F-822
OWI0804F-822
| 13.2 | 9.4 | 5.2 | 8200.00 | 27600.00 | - | 0.09 |
| |
OWI0810F-802
OWI0810F-802
| 13.2 | 9.4 | 11.4 | 8200.00 | 17000.00 | - | 0.04 |
| |
OWCWI252018-8R2
OWCWI252018-8R2
| 2.9 | 2.8 | 2.1 | 8200.00 | 8200.00 | - | - |
| |
OWCWI322522-8R2
OWCWI322522-8R2
| 3.5 | 2.9 | 2.3 | 8200.00 | 8600.00 | - | - |
| |
OWCWI252018-100
OWCWI252018-100
| 2.9 | 2.8 | 2.1 | 10000.00 | 9100.00 | - | - |
| |
OWCWI322522-100
OWCWI322522-100
| 3.5 | 2.9 | 2.3 | 10000.00 | 6800.00 | - | - |
|
Ole Wolff Elektronik A/S
|
Roedengvej 14, 4180 Soroe, DK Denmark
|
+45 5783 3830
|
sales@owolff.com
