Magnetic products
Description

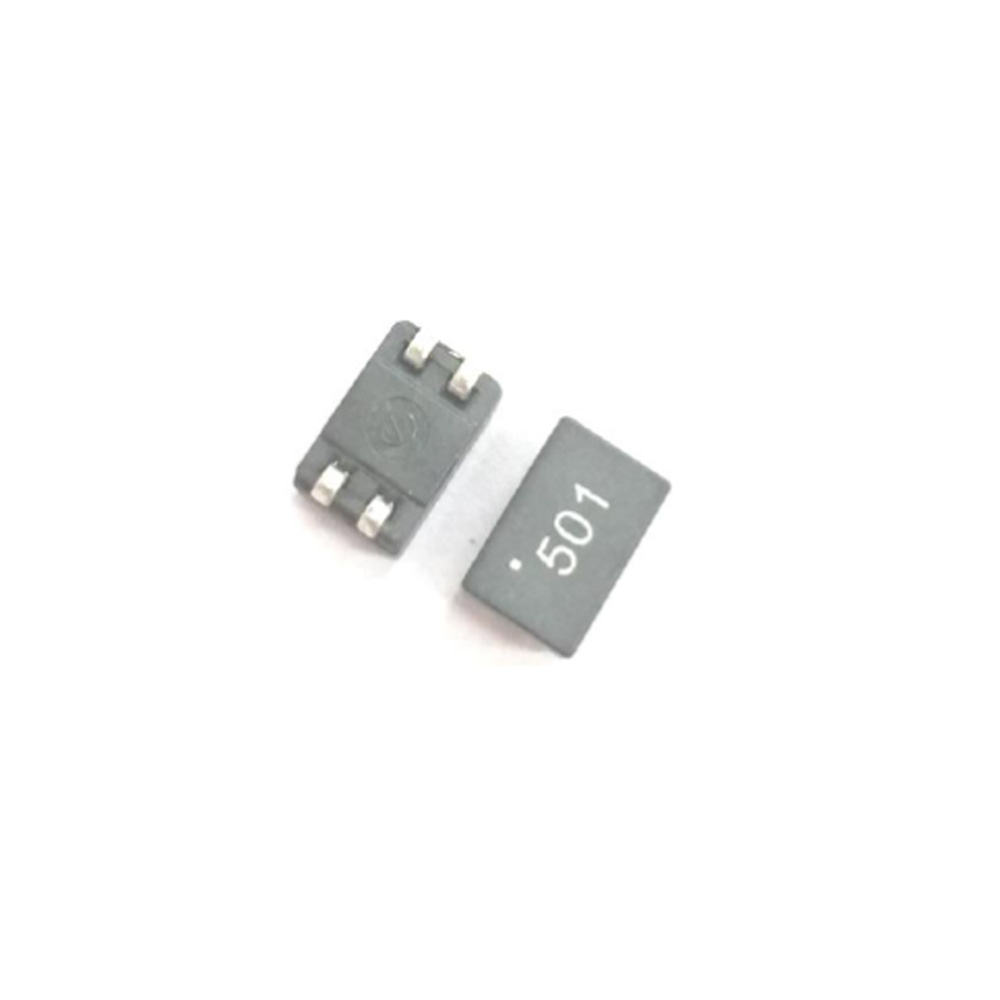

Wires bifilar wound in toroid core and assembled on base, covered with case.
Wires bifilar wound in toroid core and assembled on base, covered with case.
Features
• High rated current
• Reduced component height
• Wire wound construction CMC
• Great EMI suppression effect
• High impedance
• RoHS and REACH compliant
• High rated current
• Reduced component height
• Wire wound construction CMC
• Great EMI suppression effect
• High impedance
• RoHS and REACH compliant
Applications
• Preventive measure against common mode noise
• Radiation emissions from power lines etc.
• Great for high current circuits such as cars, wireless charging and power device design
• Industrial applications
• Preventive measure against common mode noise
• Radiation emissions from power lines etc.
• Great for high current circuits such as cars, wireless charging and power device design
• Industrial applications
| Test Voltage | 0.1V & 0.05V |
| Parameters Test Temp | 25°C |
| Operation Temp (Incl temp rise) | -40°C to +125°C |
| Storage Temp | 0~40°C |
| Storage Humidity | <70% RH |
| Resistance to Soldering Heat | 260°C for 10 sec |
| Rated Current | 1.6A |
| Temperature Rise | 4°C Typ. at Rated Current |
OWISFT0905L-
Toroid power Common Mode ChokeAll in series
Product ID
Inductance
DCR [mOhm]
Isat [A]
Irms [A]
Irated [mA]
Idc max [mA]
Q (min)
SRF [MHz]
Samples
Inductors:
L tol note:
Shape and dimensions [mm]
A
B
C
D
E
F
G
H
I
J
Shape
A:
9.20
A tol:
±0.3
B:
6.00
B tol:
±0.3
C:
5.00
C tol:
±0.3
D:
2.54
D tol:
±0.3
E:
1.00
E tol:
Ref
F:
5.70
F tol:
Ref
G:
G tol:
H:
H tol:
I:
I tol:
J:
J tol:
Shape:
Square
Dimension remarks:
Recommended dimension, a,b,c,d for PCB pad
Dimensions Image:
PAD Image:
Schematic Image:
